ماشین کنترلی هوشمند با فرمان صوتی

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

/*
* ============================================================

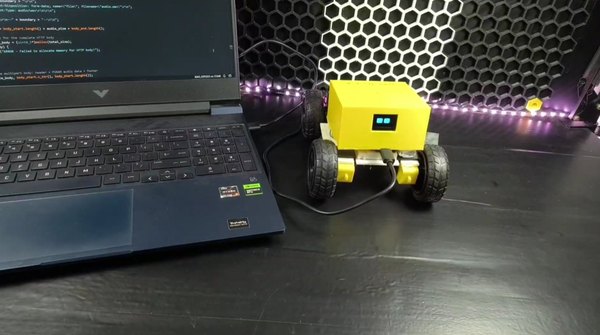

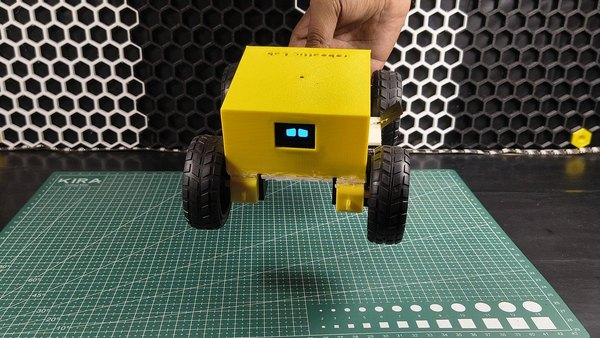

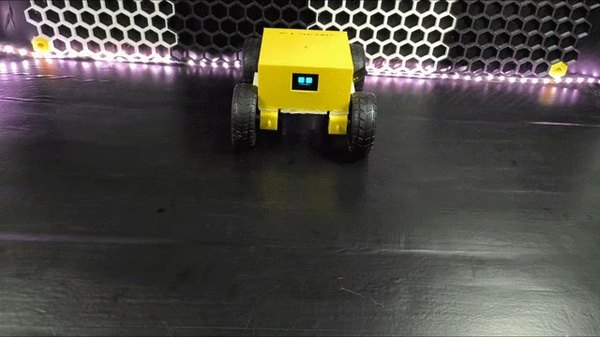

* Voice-Controlled Robot with Animated OLED Eyes
* Author : Shahbaz Hashmi Ansari
* Copyright : Roboattic Lab — All Rights Reserved
* ============================================================
*
*/
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <FluxGarage_RoboEyes.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
RoboEyes<Adafruit_SSD1306> roboEyes(display);
// --- WiFi Credentials ---
const char* ssid = "***********";
const char* password = "**********";
// --- Pin Assignments ---
#define LED 21
#define LED_ON() digitalWrite(LED, LOW)
#define LED_OFF() digitalWrite(LED, HIGH)

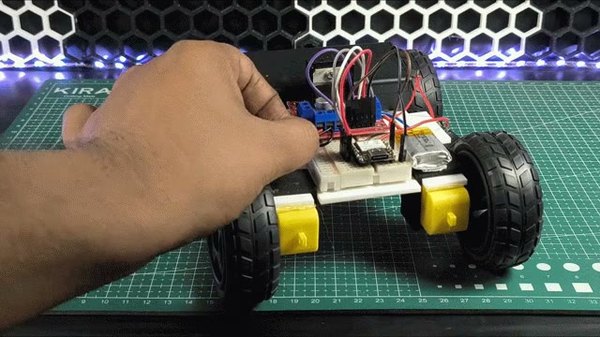

// --- L298N Motor Driver Pins (Seeed XIAO ESP32-S3) ---
#define ENA 43
#define MOTOR_IN1 44
#define MOTOR_IN2 7
#define ENB 8
#define MOTOR_IN3 9
#define MOTOR_IN4 1
#define MOTOR_PWM_FREQ 1000
#define MOTOR_PWM_RES 8
int motor_speed = 180;
#define MOTOR_MOVE_DURATION 2000
// --- PSRAM Audio Buffer ---
uint8_t* psram_audio_buffer = NULL;
size_t psram_audio_size = 0;
size_t psram_audio_capacity = 0;
#define PSRAM_AUDIO_MAX_SIZE (512 * 1024)
// --- Continuous Listening Settings ---
#define RECORD_DURATION_MS 5000

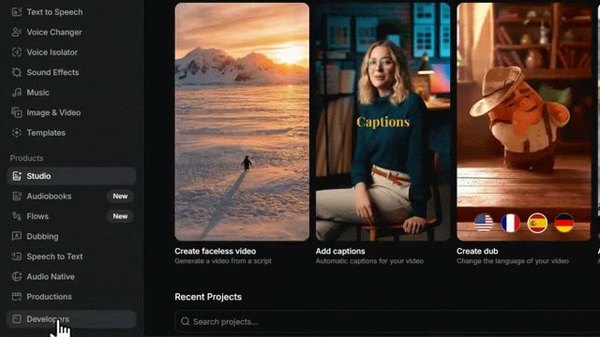

// --- ElevenLabs API ---
const char* elevenlabs_api_key = "API_KEY HERE";
const char* elevenlabs_stt_url = "https://api.elevenlabs.io/v1/speech-to-text";
// --- Function Declarations ---
bool I2S_Record_Init();
bool Record_Start(const char* filename);
bool Record_Available(const char* filename, float* audiolength_sec);
String SpeechToText_ElevenLabs(const char* filename);
void motor_init();
void motor_forward();
void motor_backward();
void motor_left();
void motor_right();
void motor_stop();
void process_voice_command(String transcription);
// ==============================================================
// Motor Control
// ==============================================================
void motor_init() {
pinMode(MOTOR_IN1, OUTPUT);
pinMode(MOTOR_IN2, OUTPUT);
pinMode(MOTOR_IN3, OUTPUT);
pinMode(MOTOR_IN4, OUTPUT);
pinMode(ENA, OUTPUT);
pinMode(ENB, OUTPUT);
digitalWrite(MOTOR_IN1, LOW);
digitalWrite(MOTOR_IN2, LOW);
digitalWrite(MOTOR_IN3, LOW);
digitalWrite(MOTOR_IN4, LOW);
analogWrite(ENA, 0);
analogWrite(ENB, 0);
Serial.println("> Motors initialized and STOPPED. Default speed: " + String(motor_speed));
}
void motor_forward() {
Serial.println("> MOTOR: Moving FORWARD (speed=" + String(motor_speed) + ")");
roboEyes.setMood(HAPPY);
roboEyes.setPosition(DEFAULT);
digitalWrite(MOTOR_IN1, HIGH);
digitalWrite(MOTOR_IN2, LOW);
digitalWrite(MOTOR_IN3, HIGH);
digitalWrite(MOTOR_IN4, LOW);
analogWrite(ENA, motor_speed);
analogWrite(ENB, motor_speed);
uint32_t move_start = millis();
while (millis() - move_start < MOTOR_MOVE_DURATION) {
roboEyes.update();
delay(5);
}
motor_stop();
}
void motor_backward() {
Serial.println("> MOTOR: Moving BACKWARD (speed=" + String(motor_speed) + ")");
roboEyes.setMood(TIRED);
roboEyes.setPosition(DEFAULT);
digitalWrite(MOTOR_IN1, LOW);
digitalWrite(MOTOR_IN2, HIGH);
digitalWrite(MOTOR_IN3, LOW);
digitalWrite(MOTOR_IN4, HIGH);
analogWrite(ENA, motor_speed);
analogWrite(ENB, motor_speed);
uint32_t move_start = millis();
while (millis() - move_start < MOTOR_MOVE_DURATION) {
roboEyes.update();
delay(5);
}
motor_stop();
}
void motor_left() {
Serial.println("> MOTOR: Turning LEFT (speed=" + String(motor_speed) + ")");
roboEyes.setMood(ANGRY);
roboEyes.setPosition(W);
digitalWrite(MOTOR_IN1, HIGH);
digitalWrite(MOTOR_IN2, LOW);
digitalWrite(MOTOR_IN3, LOW);
digitalWrite(MOTOR_IN4, HIGH);
analogWrite(ENA, motor_speed);
analogWrite(ENB, motor_speed);
uint32_t move_start = millis();
while (millis() - move_start < MOTOR_MOVE_DURATION) {
roboEyes.update();
delay(5);
}
motor_stop();
}
void motor_right() {
Serial.println("> MOTOR: Turning RIGHT (speed=" + String(motor_speed) + ")");
roboEyes.setMood(ANGRY);
roboEyes.setPosition(E);
digitalWrite(MOTOR_IN1, LOW);
digitalWrite(MOTOR_IN2, HIGH);
digitalWrite(MOTOR_IN3, HIGH);
digitalWrite(MOTOR_IN4, LOW);
analogWrite(ENA, motor_speed);
analogWrite(ENB, motor_speed);
uint32_t move_start = millis();
while (millis() - move_start < MOTOR_MOVE_DURATION) {
roboEyes.update();
delay(5);
}
motor_stop();
}
void motor_stop() {
digitalWrite(MOTOR_IN1, LOW);
digitalWrite(MOTOR_IN2, LOW);
digitalWrite(MOTOR_IN3, LOW);
digitalWrite(MOTOR_IN4, LOW);
analogWrite(ENA, 0);
analogWrite(ENB, 0);
roboEyes.setMood(DEFAULT);
roboEyes.setPosition(DEFAULT);
roboEyes.update();
}
// --- Strip punctuation and convert to lowercase for reliable command matching ---
String clean_text(String text) {
String cleaned = "";
for (int i = 0; i < (int)text.length(); i++) {
char c = text.charAt(i);
if (isAlpha(c) || isDigit(c) || c == ' ') {
cleaned += (char)tolower(c);
}
}
String result = "";
bool last_was_space = false;
for (int i = 0; i < (int)cleaned.length(); i++) {
if (cleaned.charAt(i) == ' ') {
if (!last_was_space && result.length() > 0) {
result += ' ';
last_was_space = true;
}
} else {
result += cleaned.charAt(i);
last_was_space = false;
}
}
result.trim();
return result;
}
// --- Extract a number from text — supports digits and English words ---
int extract_number(String text) {
String num_str = "";
bool found_digit = false;
for (int i = 0; i < (int)text.length(); i++) {
if (isDigit(text.charAt(i))) {
num_str += text.charAt(i);
found_digit = true;
} else if (found_digit) {
break;
}
}
if (num_str.length() > 0) {
return num_str.toInt();
}
int current = 0;
bool found_word_num = false;
int start = 0;
while (start < text.length()) {
int space_idx = text.indexOf(' ', start);
if (space_idx == -1) space_idx = text.length();
String word = text.substring(start, space_idx);
int val = -1;
if (word == "zero") val = 0;
else if (word == "one") val = 1;
else if (word == "two" || word == "to" || word == "too") val = 2;
else if (word == "three") val = 3;
else if (word == "four" || word == "for") val = 4;
else if (word == "five") val = 5;
else if (word == "six") val = 6;
else if (word == "seven") val = 7;
else if (word == "eight") val = 8;
else if (word == "nine") val = 9;
else if (word == "ten") val = 10;
else if (word == "eleven") val = 11;
else if (word == "twelve") val = 12;
else if (word == "thirteen") val = 13;
else if (word == "fourteen") val = 14;
else if (word == "fifteen") val = 15;
else if (word == "sixteen") val = 16;
else if (word == "seventeen") val = 17;
else if (word == "eighteen") val = 18;
else if (word == "nineteen") val = 19;
else if (word == "twenty") val = 20;
else if (word == "thirty") val = 30;
else if (word == "forty" || word == "fourty") val = 40;
else if (word == "fifty") val = 50;
else if (word == "sixty") val = 60;
else if (word == "seventy") val = 70;
else if (word == "eighty") val = 80;
else if (word == "ninety") val = 90;
else if (word == "hundred") val = 100;
if (val != -1) {
found_word_num = true;
if (val == 100) {
if (current == 0) current = 1;
current *= 100;
} else {
current += val;
}
} else {
if (found_word_num) break;
}
start = space_idx + 1;
}
if (found_word_num) {
return current;
}
return -1;
}
// --- Parse transcription and execute the appropriate motor command ---
void process_voice_command(String transcription) {
if (transcription.length() == 0) return;
String cmd = clean_text(transcription);
Serial.println("> Command (cleaned): [" + cmd + "]");
if (cmd.indexOf("forward") >= 0) {
motor_forward();
return;
}
if (cmd.indexOf("backward") >= 0 || cmd.indexOf("back") >= 0 || cmd.indexOf("reverse") >= 0) {
motor_backward();
return;
}
if (cmd.indexOf("left") >= 0) {
motor_left();
return;
}
if (cmd.indexOf("right") >= 0) {
motor_right();
return;
}
if (cmd.indexOf("stop") >= 0) {
motor_stop();
Serial.println("> MOTOR: STOPPED");
return;
}
if (cmd.indexOf("speed") >= 0) {
roboEyes.setMood(HAPPY);
roboEyes.setPosition(DEFAULT);
uint32_t move_start = millis();
while (millis() - move_start < 1000) {
roboEyes.update();
delay(5);
}
int new_speed = extract_number(cmd);
if (new_speed >= 0 && new_speed <= 255) {
motor_speed = new_speed;
Serial.println("> MOTOR: Speed set to " + String(motor_speed));
} else if (new_speed > 255) {
motor_speed = 255;
Serial.println("> MOTOR: Speed clamped to max 255");
} else {
Serial.println("> MOTOR: Could not parse speed value from command");
}
return;
}
Serial.println("> No motor command detected.");
}
// ==============================================================
// I2S Audio Recording
// ==============================================================
#include "driver/i2s_std.h"
#ifndef DEBUG
#define DEBUG true
#define DebugPrint(x) ; if (DEBUG) { Serial.print(x); }
#define DebugPrintln(x) ; if (DEBUG) { Serial.println(x); }
#endif
// --- I2S Pin Assignments ---
#define I2S_WS 2
#define I2S_SD 4
#define I2S_SCK 3
#define SAMPLE_RATE 16000
#define BITS_PER_SAMPLE 16
#define GAIN_BOOSTER_I2S 4
// Set to true if L/R pin is tied to 3.3V, false if tied to GND
#define MIC_CHANNEL_RIGHT true
i2s_chan_handle_t rx_handle;
struct WAV_HEADER {
char riff[4] = { 'R', 'I', 'F', 'F' };
long flength = 0;
char wave[4] = { 'W', 'A', 'V', 'E' };
char fmt[4] = { 'f', 'm', 't', ' ' };
long chunk_size = 16;
short format_tag = 1;
short num_chans = 1;
long srate = SAMPLE_RATE;
long bytes_per_sec = SAMPLE_RATE * (BITS_PER_SAMPLE / 8);
short bytes_per_samp = (BITS_PER_SAMPLE / 8);
short bits_per_samp = BITS_PER_SAMPLE;
char dat[4] = { 'd', 'a', 't', 'a' };
long dlength = 0;
} myWAV_Header;
bool flg_is_recording = false;
bool flg_I2S_initialized = false;
bool I2S_Record_Init() {
i2s_chan_config_t chan_cfg = I2S_CHANNEL_DEFAULT_CONFIG(I2S_NUM_AUTO, I2S_ROLE_MASTER);
i2s_new_channel(&chan_cfg, NULL, &rx_handle);
i2s_std_config_t std_cfg = {
.clk_cfg = I2S_STD_CLK_DEFAULT_CONFIG(SAMPLE_RATE),
.slot_cfg = I2S_STD_PHILIPS_SLOT_DEFAULT_CONFIG(I2S_DATA_BIT_WIDTH_16BIT, I2S_SLOT_MODE_STEREO),
.gpio_cfg = {
.mclk = I2S_GPIO_UNUSED,
.bclk = (gpio_num_t)I2S_SCK,
.ws = (gpio_num_t)I2S_WS,
.dout = I2S_GPIO_UNUSED,
.din = (gpio_num_t)I2S_SD,
.invert_flags = {
.mclk_inv = false,
.bclk_inv = false,
.ws_inv = false,
},
},
};
i2s_channel_init_std_mode(rx_handle, &std_cfg);
i2s_channel_enable(rx_handle);
flg_I2S_initialized = true;
// Flush initial garbage samples
int16_t dummy_buf[1024];
size_t dummy_read = 0;
for (int i = 0; i < 10; i++) {
i2s_channel_read(rx_handle, dummy_buf, sizeof(dummy_buf), &dummy_read, portMAX_DELAY);
}
// Microphone diagnostic test
int16_t test_buf[1024];
size_t test_read = 0;
i2s_channel_read(rx_handle, test_buf, sizeof(test_buf), &test_read, portMAX_DELAY);
int total_stereo_samples = test_read / 2;
int frames = total_stereo_samples / 2;
int left_nonzero = 0;
int16_t left_max = 0;
int left_clipped = 0;
for (int i = 0; i < frames; i++) {
int16_t s = test_buf[i * 2];
if (s != 0) left_nonzero++;
if (abs(s) > abs(left_max)) left_max = s;
if (s == 32767 || s == -32768) left_clipped++;
}
int right_nonzero = 0;
int16_t right_max = 0;
int right_clipped = 0;
for (int i = 0; i < frames; i++) {
int16_t s = test_buf[i * 2 + 1];
if (s != 0) right_nonzero++;
if (abs(s) > abs(right_max)) right_max = s;
if (s == 32767 || s == -32768) right_clipped++;
}
Serial.println("> I2S initialized and flushed.");
Serial.println("> MIC TEST (" + String(frames) + " stereo frames):");
Serial.println("> LEFT ch: " + String(left_nonzero) + " non-zero, max=" + String(left_max) + ", clipped=" + String(left_clipped));
Serial.println("> RIGHT ch: " + String(right_nonzero) + " non-zero, max=" + String(right_max) + ", clipped=" + String(right_clipped));
Serial.println("> Using: " + String(MIC_CHANNEL_RIGHT ? "RIGHT" : "LEFT") + " channel");
Serial.print("> First 8 stereo frames (L,R): ");
for (int i = 0; i < 8 && i < frames; i++) {
Serial.print("[" + String(test_buf[i * 2]) + "," + String(test_buf[i * 2 + 1]) + "] ");
}
Serial.println();
return flg_I2S_initialized;
}
bool Record_Start(const char* audio_filename) {
if (!flg_I2S_initialized) {
Serial.println("ERROR in Record_Start() - I2S not initialized, call 'I2S_Record_Init()' missed");
return false;
}
if (!flg_is_recording) {
flg_is_recording = true;
psram_audio_size = 0;
memcpy(psram_audio_buffer, (uint8_t*)&myWAV_Header, 44);
psram_audio_size = 44;
DebugPrintln("\n> WAV Header generated in PSRAM, Audio Recording started ... ");
return true;
}
if (flg_is_recording) {
int16_t stereo_buffer[2048];
size_t bytes_read = 0;
i2s_channel_read(rx_handle, stereo_buffer, sizeof(stereo_buffer), &bytes_read, portMAX_DELAY);
int total_samples = bytes_read / 2;
int stereo_frames = total_samples / 2;
int16_t mono_buffer[1024];
for (int i = 0; i < stereo_frames && i < 1024; i++) {
if (MIC_CHANNEL_RIGHT)
mono_buffer[i] = stereo_buffer[i * 2 + 1];
else
mono_buffer[i] = stereo_buffer[i * 2];
}
if (GAIN_BOOSTER_I2S > 1 && GAIN_BOOSTER_I2S <= 64) {
for (int i = 0; i < stereo_frames && i < 1024; ++i) {
int32_t amplified = (int32_t)mono_buffer[i] * GAIN_BOOSTER_I2S;
if (amplified > 32767) amplified = 32767;
if (amplified < -32768) amplified = -32768;
mono_buffer[i] = (int16_t)amplified;
}
}
size_t write_bytes = stereo_frames * 2;
if (write_bytes > 2048) write_bytes = 2048;
if ((psram_audio_size + write_bytes) <= psram_audio_capacity) {
memcpy(psram_audio_buffer + psram_audio_size, (uint8_t*)mono_buffer, write_bytes);
psram_audio_size += write_bytes;
return true;
} else {
Serial.println("ERROR in Record_Start() - PSRAM buffer full!");
return false;
}
}
return false;
}
bool Record_Available(const char* audio_filename, float* audiolength_sec) {
if (!flg_is_recording) return false;
if (!flg_I2S_initialized) return false;
if (flg_is_recording) {
long filesize = psram_audio_size;
myWAV_Header.flength = filesize;
myWAV_Header.dlength = (filesize - 44);
memcpy(psram_audio_buffer, (uint8_t*)&myWAV_Header, 44);
flg_is_recording = false;
*audiolength_sec = (float)(filesize - 44) / (SAMPLE_RATE * BITS_PER_SAMPLE / 8);
DebugPrintln("> ... Done. Audio Recording finished.");
DebugPrint("> AUDIO in PSRAM, size [bytes]: " + (String)filesize);
DebugPrintln(", length [sec]: " + (String)*audiolength_sec);
if (filesize > 76) {
DebugPrint("> First 16 mono samples (16bit signed): ");
int16_t* samples = (int16_t*)(psram_audio_buffer + 44);
for (int i = 0; i < 16; i++) {
DebugPrint((String)samples[i] + " ");
}
DebugPrintln("");
}
return true;
}
return false;
}
// ==============================================================
// ElevenLabs Speech-to-Text
// ==============================================================
String SpeechToText_ElevenLabs(const char* audio_filename) {
uint32_t t_start = millis();
if (WiFi.status() != WL_CONNECTED) {
Serial.println("ERROR - WiFi not connected, cannot send to ElevenLabs STT");
return ("");
}
size_t audio_size = psram_audio_size;
if (audio_size == 0) {
Serial.println("ERROR - No audio data in PSRAM");
return ("");
}
if (audio_size > 500000) {
Serial.println("ERROR - Audio data too large for STT request (>500KB)");
return ("");
}
DebugPrintln("> Audio data in PSRAM, size: " + (String)audio_size);
uint32_t t_data_ready = millis();
HTTPClient http;
if (!http.begin(elevenlabs_stt_url)) {
Serial.println("ERROR - Failed to initialize HTTP connection to ElevenLabs");
return ("");
}
http.setTimeout(30000);
http.setConnectTimeout(10000);
http.addHeader("xi-api-key", elevenlabs_api_key);
String boundary = "----WebKitFormBoundary7MA4YWxkTrZu0gW";
http.addHeader("Content-Type", "multipart/form-data; boundary=" + boundary);
String body_start = "--" + boundary + "\r\n";
body_start += "Content-Disposition: form-data; name=\"model_id\"\r\n\r\n";
body_start += "scribe_v2\r\n";
body_start += "--" + boundary + "\r\n";
body_start += "Content-Disposition: form-data; name=\"language_code\"\r\n\r\n";
body_start += "eng\r\n";
body_start += "--" + boundary + "\r\n";
body_start += "Content-Disposition: form-data; name=\"file\"; filename=\"audio.wav\"\r\n";
body_start += "Content-Type: audio/wav\r\n\r\n";
String body_end = "\r\n--" + boundary + "--\r\n";
size_t total_size = body_start.length() + audio_size + body_end.length();
uint8_t* complete_body = (uint8_t*)malloc(total_size);
if (!complete_body) {
Serial.println("ERROR - Failed to allocate memory for HTTP body!");
http.end();
return ("");
}
memcpy(complete_body, body_start.c_str(), body_start.length());
memcpy(complete_body + body_start.length(), psram_audio_buffer, audio_size);
memcpy(complete_body + body_start.length() + audio_size, body_end.c_str(), body_end.length());
uint32_t t_request_prepared = millis();
DebugPrintln("> POST Request to ElevenLabs STT, sending " + String(total_size) + " bytes ...");
uint32_t t_request_sent = millis();
int httpResponseCode = http.POST(complete_body, total_size);
uint32_t t_response_received = millis();
free(complete_body);
String transcription = "";
String response = http.getString();
uint32_t t_response_parsed = millis();
if (httpResponseCode == 200) {
DebugPrintln("> HTTP 200 OK");
DynamicJsonDocument doc(2048);
if (deserializeJson(doc, response) == DeserializationError::Ok) {
if (doc.containsKey("text")) {
transcription = doc["text"].as<String>();
}
} else {
Serial.println("ERROR - Failed to parse ElevenLabs JSON response");
}
} else {
Serial.printf("ERROR - HTTP Response Code: %d\n", httpResponseCode);
Serial.println("Response: " + response);
}
http.end();
DebugPrintln("---------------------------------------------------");
DebugPrintln("-> Audio data size [bytes]: " + (String)audio_size);
DebugPrintln("-> Latency Data Ready [t_data_ready]: " + (String)((float)((t_data_ready - t_start)) / 1000) + " sec");
DebugPrintln("-> Latency Request Preparation: " + (String)((float)((t_request_prepared - t_data_ready)) / 1000) + " sec");
DebugPrintln("-> Latency ElevenLabs STT Response: " + (String)((float)((t_response_received - t_request_sent)) / 1000) + " sec");
DebugPrintln("-> Latency Response Parsing: " + (String)((float)((t_response_parsed - t_response_received)) / 1000) + " sec");
DebugPrintln("=> TOTAL Duration [sec]: ..................... " + (String)((float)((t_response_parsed - t_start)) / 1000));
DebugPrintln("=> Server response length [bytes]: " + (String)response.length());
DebugPrintln("=> Transcription: [" + transcription + "]");
DebugPrintln("---------------------------------------------------\n");
return transcription;
}
// ==============================================================
// Setup & Loop
// ==============================================================
void setup() {
motor_init();
Serial.begin(115200);
Serial.setTimeout(100);
pinMode(LED, OUTPUT);
LED_OFF();
delay(500);
Wire.setPins(5, 6);
Wire.begin();
bool display_found = false;
if (display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
display_found = true;
} else if (display.begin(SSD1306_SWITCHCAPVCC, 0x3D)) {
display_found = true;
}
if (!display_found) {
Serial.println(F("\nCRITICAL ERROR: OLED Display Not Found!"));
Serial.println(F("Check I2C wiring: SDA to D4(GPIO5) & SCL to D5(GPIO6)"));
while (true) { delay(100); }
}
display.clearDisplay();
display.display();
roboEyes.begin(SCREEN_WIDTH, SCREEN_HEIGHT, 100);
roboEyes.setAutoblinker(true, 3, 2);
roboEyes.setIdleMode(true, 2, 2);
roboEyes.setMood(DEFAULT);
roboEyes.setPosition(DEFAULT);
Serial.println(VERSION);
if (psramFound()) {
psram_audio_buffer = (uint8_t*)ps_malloc(PSRAM_AUDIO_MAX_SIZE);
if (psram_audio_buffer) {
psram_audio_capacity = PSRAM_AUDIO_MAX_SIZE;
Serial.println("PSRAM initialized. Allocated " + String(PSRAM_AUDIO_MAX_SIZE) + " bytes for audio buffer.");
} else {
Serial.println("ERROR - PSRAM allocation failed!");
return;
}
} else {
Serial.println("ERROR - No PSRAM found! XIAO ESP32-S3 PSRAM required.");
return;
}
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
Serial.print("Connecting WLAN ");
while (WiFi.status() != WL_CONNECTED) {
Serial.print(".");
roboEyes.update();
delay(500);
}
Serial.println(". Done, device connected.");
LED_OFF();
I2S_Record_Init();
Serial.println("> Continuous listening mode: recording " + String(RECORD_DURATION_MS / 1000) + " sec chunks, transcribing each ...");
Serial.println("> Voice commands: 'go forward/backward/left/right/stop'");
Serial.println("> Speed command: 'make speed 150' (0-255)");
}
void loop() {
roboEyes.setMood(DEFAULT);
roboEyes.setPosition(N);
roboEyes.update();
// --- Step 1: Record audio for configured duration ---
LED_ON();
motor_stop();
uint32_t record_start = millis();
Record_Start("PSRAM_AUDIO");
while (millis() - record_start < RECORD_DURATION_MS) {
Record_Start("PSRAM_AUDIO");
roboEyes.update();
display.setTextSize(1);
display.setTextColor(SSD1306_WHITE);
int16_t x1, y1;
uint16_t tw, th;
display.getTextBounds("Listening...", 0, 0, &x1, &y1, &tw, &th);
int textX = (SCREEN_WIDTH - tw) / 2;
int textY = SCREEN_HEIGHT - th - 2;
display.fillRect(textX - 2, textY - 1, tw + 4, th + 2, SSD1306_BLACK);
display.setCursor(textX, textY);
display.print("Listening...");
display.display();
delay(5);
}
float recorded_seconds = 0;
Record_Available("PSRAM_AUDIO", &recorded_seconds);
LED_OFF();
// --- Step 2: Transcribe audio via ElevenLabs ---
if (recorded_seconds > 0.4) {
roboEyes.setMood(TIRED);
roboEyes.setPosition(DEFAULT);
roboEyes.update();
String transcription = SpeechToText_ElevenLabs("PSRAM_AUDIO");
if (transcription.length() > 0) {
Serial.println(">> " + transcription);
// --- Step 3: Execute the detected voice command ---
process_voice_command(transcription);
} else {
Serial.println("> (silence or no speech detected)");
}
}
// --- Step 4: Begin next recording cycle ---
}

const char* ssid = "YOUR_WIFI_NAME";
const char* password = "YOUR_WIFI_PASSWORD";

const char* ssid = "MyHomeWiFi";
const char* password = "mypassword123";

const char* elevenlabs_api_key = "YOUR_API_KEY";

const char* elevenlabs_api_key = "sk_xxxxxxxxxxxxxxxxxxxxx";
