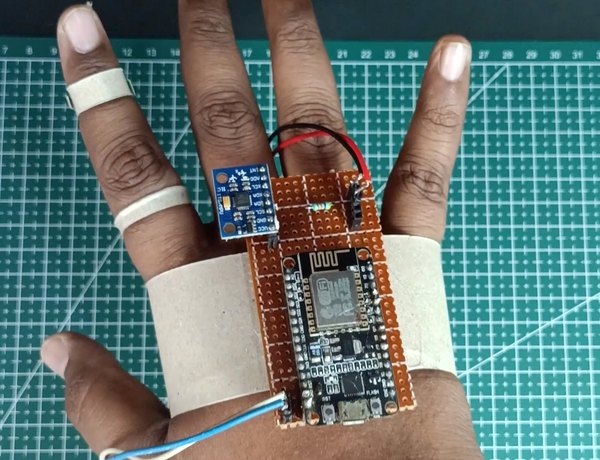

موس حرکتی با برد NodeMCU و سنسور MPU6050

ابزار و گجت

۰ نظر

۹۶ نفر

کد ۴۳۰۲

چطور میتونم این پروژه رو ارتقا بدم؟

توی دنیای امروز که همه‌چیز داره هوشمندتر می‌شه، کنترل کردن کامپیوتر با حرکت دست یکی از جذاب‌ترین کارهاست. فرض کن بدون دست زدن به موس فیزیکی و فقط با تکون دادن دستت تو هوا، نشانگر موس روی مانیتور جابه‌جا بشه و با خم کردن انگشتت بتونی کلیک کنی. این دقیقا همون چیزیه که امروز قراره تو آیسی‌مدار با هم بسازیم.

پروژه ساخت موس حرکتی با ترکیب برد NodeMCU، سنسور شتاب‌سنج MPU6050 و یک سنسور خمش انجام می‌شه. این پروژه نه‌تنها یک گجت خفن و کاربردی برای ارائه‌ها یا کارهای روزمره‌ست، بلکه کمک می‌کنه تا مفاهیم ارتباط وای‌فای و پردازش داده‌های سنسورها رو خیلی عمیق‌تر یاد بگیری.

ما از طریق ارتباط بی‌سیم بین برد و کامپیوتر، حرکات دست رو به دستورات حرکتی موس تبدیل می‌کنیم. بریم سراغ قطعات و ساخت این پروژه هیجان‌انگیز تا یک موس کاملا اختصاصی و متفاوت برای خودت بسازی.

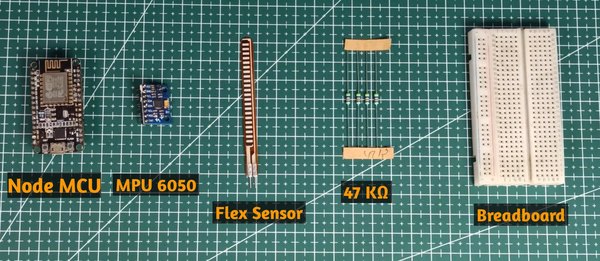

قطعات موردنیاز

برد NodeMCU
سنسور MPU6050
مقاومت 47 کیلواهم
سنسور خمش (Flex Sensor)
بردبورد

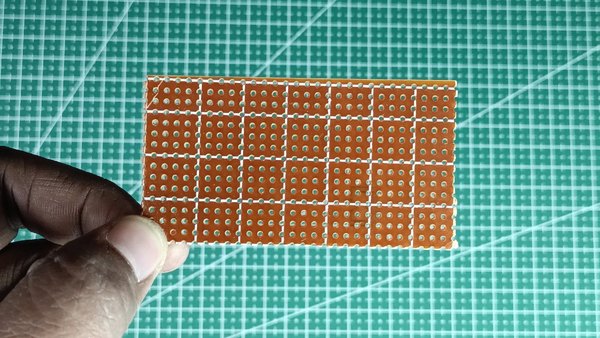

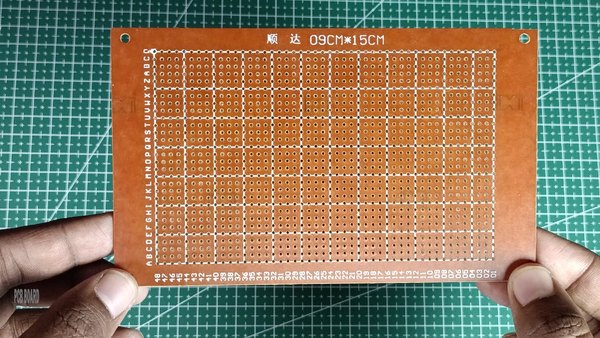

برد سوراخ‌دار (PCB)
باتری 18650
جاباتری 18650
هویه
چسب حرارتی
کاتر
نرم‌افزار Arduino IDE
نرم‌افزار VS Code

مرحله ۱

بستن مدار روی بردبورد

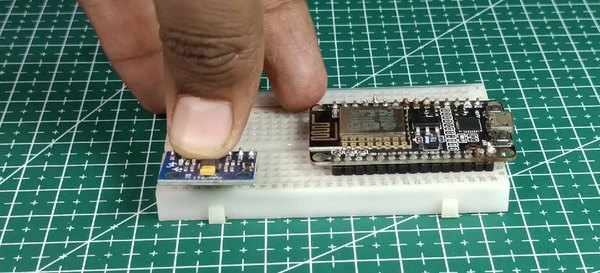

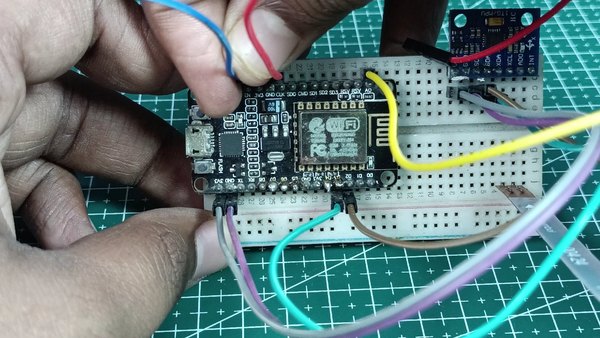

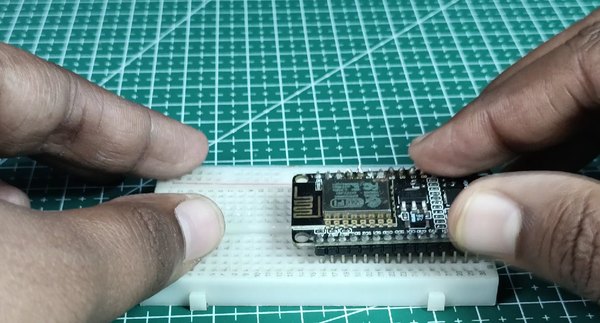

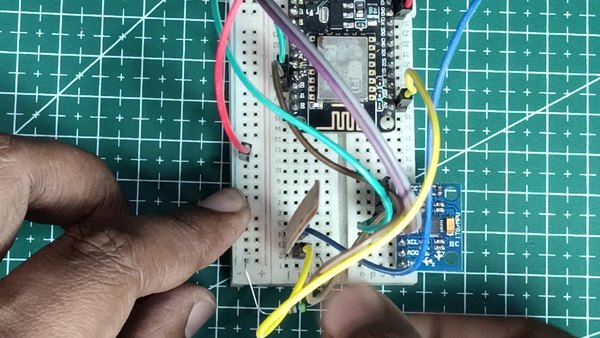

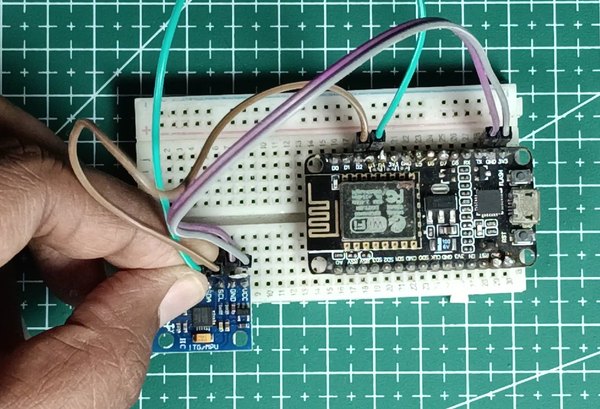

اول از همه باید قطعات رو روی بردبورد جا بزنیم. برد NodeMCU و سنسور MPU6050 رو با دقت روی بردبورد قرار بده. حواست باشه پایه‌ها کج نشن.

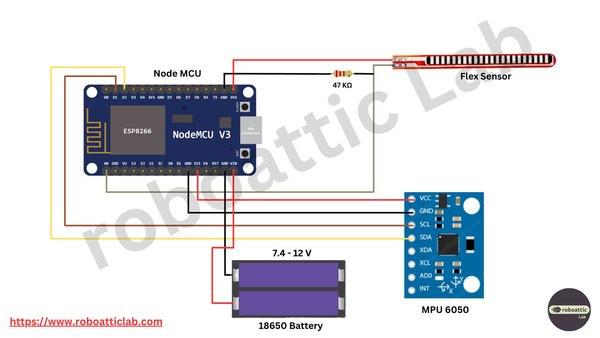

پایه‌های VCC و GND سنسور MPU6050 رو به ترتیب به پین‌های 3.3 ولت و GND روی برد NodeMCU وصل کن.
حالا نوبت ارتباط داده‌هاست؛ پین SDA سنسور رو به پین D2 و پین SCL رو به پین D1 روی برد متصل کن تا این دو تا قطعه بتونن به راحتی با هم ارتباط برقرار کنن.

یک نکته خیلی مهم اینه که حتما اتصالات سیم‌ها رو دوباره چک کنی. یک سیم شل یا اشتباه وصل شده می‌تونه کل پروژه رو مختل کنه و حسابی وقتت رو بگیره.

مرحله ۲

نصب کتابخانه‌های پایتون و آردوینو

برای اینکه کدهای پایتون و آردوینو بدون مشکل اجرا بشن، باید یک‌سری کتابخونه نصب کنیم. اول از سمت پایتون شروع می‌کنیم. یک فایل به اسم requirements.txt بساز و محتوای زیر رو داخلش قرار بده:

TXT

requests
numpy
pyautogui

requests
numpy
pyautogui

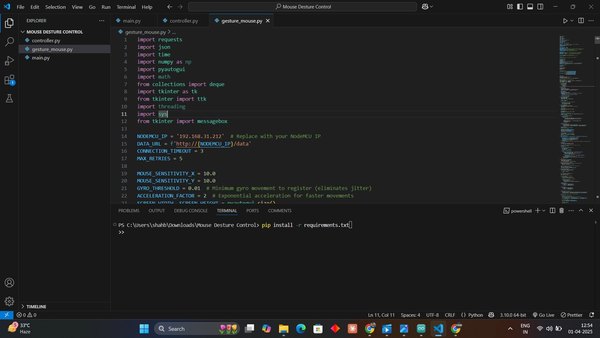

بعد از ساخت فایل، محیط خط فرمان (ترمینال) رو باز کن و با دستور زیر همه پکیج‌های پایتون رو نصب کن:

Shell

pip install -r requirements.txt

pip install -r requirements.txt

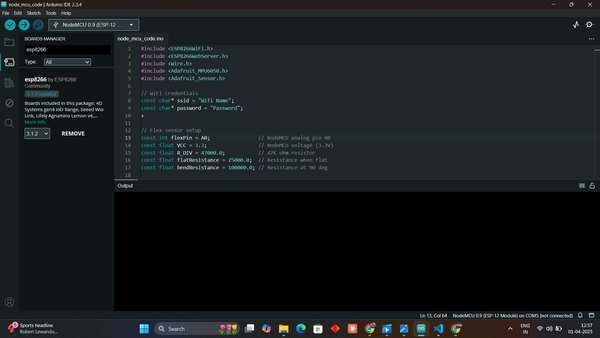

حالا بریم سراغ کدهای آردوینو. برای اینکه برد بتونه درست کار کنه، باید چند تا کتابخونه رو روی نرم‌افزار Arduino IDE نصب کنی:

1. کتابخانه ESP8266WiFi

این کتابخونه برای اتصال برد به شبکه وای‌فای لازمه. برای نصبش مراحل زیر رو طی کن:

نرم‌افزار Arduino IDE رو باز کن.

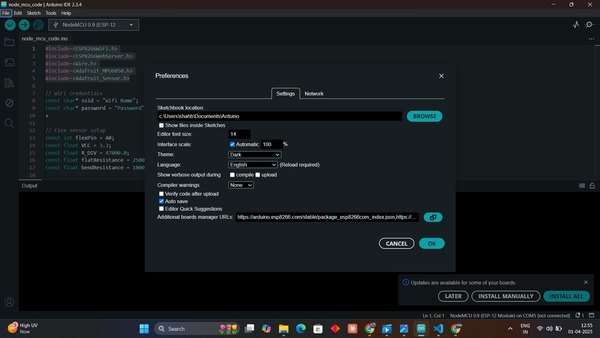

از منوی File وارد بخش Preferences بشو.
توی کادر Additional Board Manager URLs، آدرس زیر رو وارد کن:

TXT

http://arduino.esp8266.com/stable/package_esp8266com_index.json

http://arduino.esp8266.com/stable/package_esp8266com_index.json

حالا از منوی Tools به بخش Board و بعد Boards Manager برو.
کلمه ESP8266 رو جستجو کن و پکیجی که توسط ESP8266 Community ساخته شده رو نصب کن. با این کار، کتابخونه وای‌فای هم خودکار نصب می‌شه.

2. کتابخانه Adafruit_MPU6050

این کتابخونه برای خوندن داده‌های شتاب‌سنج و ژیروسکوپ سنسور MPU6050 استفاده می‌شه.

نرم‌افزار Arduino IDE رو باز کن.
از مسیر Sketch به Include Library و بعد Manage Libraries برو.
عبارت Adafruit MPU6050 رو سرچ کن و روی دکمه نصب کلیک کن.

3. کتابخانه Adafruit_Sensor

این کتابخونه یک رابط یکپارچه برای کار با سنسورهای مختلف فراهم می‌کنه.

دوباره وارد بخش Manage Libraries بشو.
عبارت Adafruit Unified Sensor رو جستجو و نصب کن.

مرحله ۳

اجرای کدهای پایه و دریافت آدرس IP

حالا وقتشه که با آپلود کدهای اولیه، مدارمون رو بیدار کنیم! قدم‌های زیر رو مو‌به‌مو انجام بده:

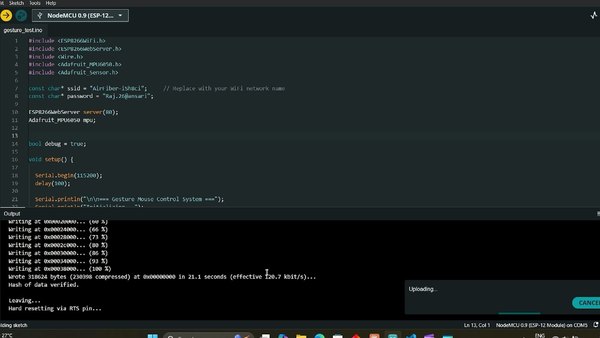

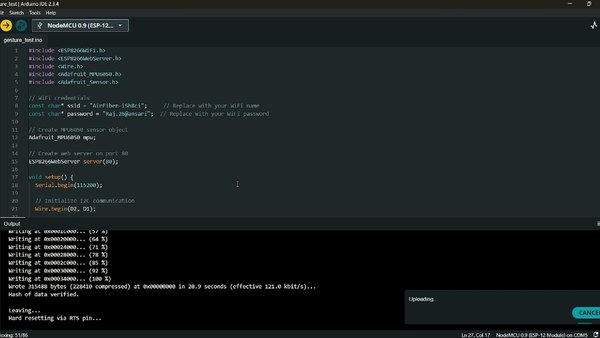

نرم‌افزار Arduino IDE رو باز کن و کدهای پایه رو روی برد NodeMCU آپلود کن.

Arduino

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
// WiFi credentials
const char* ssid = "YourWiFiName"; // Replace with your WiFi network name
const char* password = "YourPassword"; // Replace with your WiFi password
ESP8266WebServer server(80);
Adafruit_MPU6050 mpu;
void setup() {
Serial.begin(115200);
Wire.begin(D2, D1); // SDA=D2, SCL=D1
// Initialize MPU6050
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1) {
delay(10);
}
}
// Configure sensor settings
mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
// Connect to WiFi
WiFi.begin(ssid, password);
Serial.print("Connecting to WiFi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.print("Connected to ");
Serial.println(ssid);
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Define server routes
server.on("/", handleRoot);
server.on("/data", handleData);
// Start server
server.begin();
Serial.println("HTTP server started");
}
void loop() {
server.handleClient();
}
void handleRoot() {
String html = "<!DOCTYPE html>\n";
html += "<html>\n";
html += "<head>\n";
html += "<title>MPU6050 Sensor Data</title>\n";
html += "</head>\n";
html += "<body>\n";
html += "<h1>MPU6050 Sensor Web Server</h1>\n";
html += "<p>Use the /data endpoint to get sensor readings in JSON format</p>\n";
html += "<p>Server IP: " + WiFi.localIP().toString() + "</p>\n";
html += "</body>\n";
html += "</html>\n";
server.send(200, "text/html", html);
}
void handleData() {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
// Create JSON response
String json = "{";
json += "\"accelerometer\": {";
json += "\"x\": " + String(a.acceleration.x) + ", ";
json += "\"y\": " + String(a.acceleration.y) + ", ";
json += "\"z\": " + String(a.acceleration.z);
json += "}, ";
json += "\"gyroscope\": {";
json += "\"x\": " + String(g.gyro.x) + ", ";
json += "\"y\": " + String(g.gyro.y) + ", ";
json += "\"z\": " + String(g.gyro.z);
json += "}, ";
json += "\"temperature\": " + String(temp.temperature);
json += "}";
server.send(200, "application/json", json);
}

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
// WiFi credentials
const char* ssid = "YourWiFiName"; // Replace with your WiFi network name
const char* password = "YourPassword"; // Replace with your WiFi password
ESP8266WebServer server(80);
Adafruit_MPU6050 mpu;
void setup() {
Serial.begin(115200);
Wire.begin(D2, D1); // SDA=D2, SCL=D1
// Initialize MPU6050
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1) {
delay(10);
}
}
// Configure sensor settings
mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
// Connect to WiFi
WiFi.begin(ssid, password);
Serial.print("Connecting to WiFi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.print("Connected to ");
Serial.println(ssid);
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Define server routes
server.on("/", handleRoot);
server.on("/data", handleData);
// Start server
server.begin();
Serial.println("HTTP server started");
}
void loop() {
server.handleClient();
}
void handleRoot() {
String html = "<!DOCTYPE html>\n";
html += "<html>\n";
html += "<head>\n";
html += "<title>MPU6050 Sensor Data</title>\n";
html += "</head>\n";
html += "<body>\n";
html += "<h1>MPU6050 Sensor Web Server</h1>\n";
html += "<p>Use the /data endpoint to get sensor readings in JSON format</p>\n";
html += "<p>Server IP: " + WiFi.localIP().toString() + "</p>\n";
html += "</body>\n";
html += "</html>\n";
server.send(200, "text/html", html);
}
void handleData() {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
// Create JSON response
String json = "{";
json += "\"accelerometer\": {";
json += "\"x\": " + String(a.acceleration.x) + ", ";
json += "\"y\": " + String(a.acceleration.y) + ", ";
json += "\"z\": " + String(a.acceleration.z);
json += "}, ";
json += "\"gyroscope\": {";
json += "\"x\": " + String(g.gyro.x) + ", ";
json += "\"y\": " + String(g.gyro.y) + ", ";
json += "\"z\": " + String(g.gyro.z);
json += "}, ";
json += "\"temperature\": " + String(temp.temperature);
json += "}";
server.send(200, "application/json", json);
}

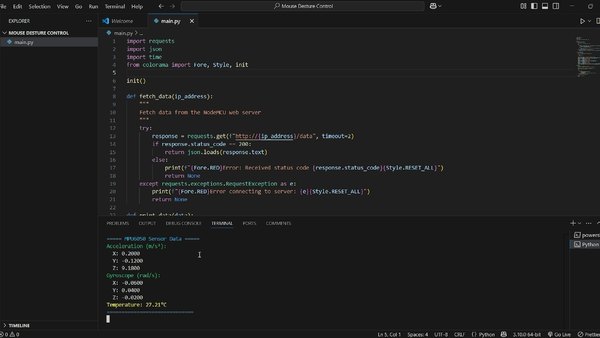

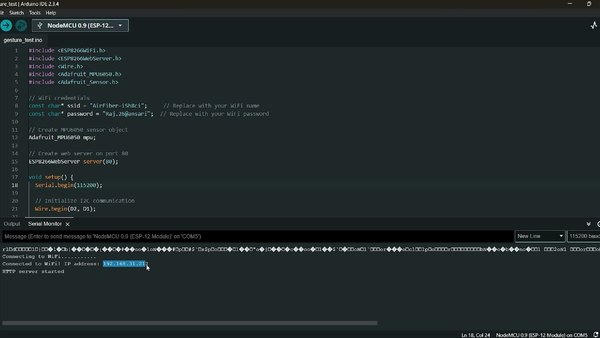

وقتی آپلود تموم شد، سریال مانیتور رو باز کن. اینجا باید یک آدرس IP محلی ببینی. این همون رمز ارتباطی ماست، پس کپیش کن!
حالا نرم‌افزار VS Code رو باز کن و کدهای پایتون زیر رو توش قرار بده:

JavaScript

import requests
import json
import time
from colorama import Fore, Style, init
init()
def fetch_data(ip_address):
try:
response = requests.get(f"http://{ip_address}/data", timeout=2)
if response.status_code == 200:
return json.loads(response.text)
else:
print(f"{Fore.RED}Error: Received status code {response.status_code}{Style.RESET_ALL}")
return None
except requests.exceptions.RequestException as e:
print(f"{Fore.RED}Error connecting to server: {e}{Style.RESET_ALL}")
return None
def print_data(data):
if data is None:
return
print("\033c", end="") # Clear the terminal screen
print(f"{Fore.CYAN}===== MPU6050 Sensor Data ====={Style.RESET_ALL}")
print(f"{Fore.GREEN}Acceleration (m/s):{Style.RESET_ALL}")
print(f" X: {data['accel_x']:.4f}")
print(f" Y: {data['accel_y']:.4f}")
print(f" Z: {data['accel_z']:.4f}")
print(f"{Fore.GREEN}Gyroscope (rad/s):{Style.RESET_ALL}")
print(f" X: {data['gyro_x']:.4f}")
print(f" Y: {data['gyro_y']:.4f}")
print(f" Z: {data['gyro_z']:.4f}")
print(f"{Fore.YELLOW}Temperature: {data['temp']:.2f}C{Style.RESET_ALL}")
print(f"{Fore.CYAN}============================={Style.RESET_ALL}")
def main():
# Ask for the NodeMCU IP address
ip_address = input("Enter the NodeMCU IP address: ")
print(f"Connecting to NodeMCU at {ip_address}...")
print("Press Ctrl+C to stop")
try:
while True:
data = fetch_data(ip_address)
print_data(data)
time.sleep(0.1)
except KeyboardInterrupt:
print("\nExiting program")
if __name__ == "__main__":
main()

import requests
import json
import time
from colorama import Fore, Style, init
init()
def fetch_data(ip_address):
try:
response = requests.get(f"http://{ip_address}/data", timeout=2)
if response.status_code == 200:
return json.loads(response.text)
else:
print(f"{Fore.RED}Error: Received status code {response.status_code}{Style.RESET_ALL}")
return None
except requests.exceptions.RequestException as e:
print(f"{Fore.RED}Error connecting to server: {e}{Style.RESET_ALL}")
return None
def print_data(data):
if data is None:
return
print("\033c", end="") # Clear the terminal screen
print(f"{Fore.CYAN}===== MPU6050 Sensor Data ====={Style.RESET_ALL}")
print(f"{Fore.GREEN}Acceleration (m/s²):{Style.RESET_ALL}")
print(f" X: {data['accel_x']:.4f}")
print(f" Y: {data['accel_y']:.4f}")
print(f" Z: {data['accel_z']:.4f}")
print(f"{Fore.GREEN}Gyroscope (rad/s):{Style.RESET_ALL}")
print(f" X: {data['gyro_x']:.4f}")
print(f" Y: {data['gyro_y']:.4f}")
print(f" Z: {data['gyro_z']:.4f}")
print(f"{Fore.YELLOW}Temperature: {data['temp']:.2f}°C{Style.RESET_ALL}")
print(f"{Fore.CYAN}============================={Style.RESET_ALL}")
def main():
# Ask for the NodeMCU IP address
ip_address = input("Enter the NodeMCU IP address: ")
print(f"Connecting to NodeMCU at {ip_address}...")
print("Press Ctrl+C to stop")
try:
while True:
data = fetch_data(ip_address)
print_data(data)
time.sleep(0.1)
except KeyboardInterrupt:
print("\nExiting program")
if __name__ == "__main__":
main()

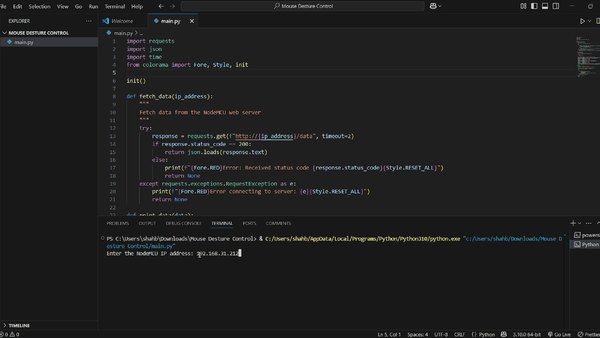

در نهایت، اون آدرس IP که از آردوینو گرفتی رو توی کد پایتون جایگذاری کن. برنامه رو اجرا کن و از دیدن جریان داده‌های ژیروسکوپ و شتاب‌سنج سنسور MPU6050 توی ترمینال لذت ببر.

مرحله ۴

نکات طلایی برای پایداری مدار

قبل از اینکه بریم سراغ حرکت دادن موس، چند تا نکته مهم هست که باید بهشون دقت کنی. وقتی داری با سنسورهای حساس مثل MPU6050 کار می‌کنی، حتی یه نویز کوچیک توی تغذیه می‌تونه روی حرکت موس تاثیر بذاره و باعث پرش نشانگر روی صفحه بشه.

همیشه مطمئن شو که کابل USB که برای تغذیه و پروگرام کردن استفاده می‌کنی کیفیت خوبی داشته باشه تا جریان یکنواختی به مدار برسه و ارتباط وای‌فای قطع و وصل نشه.

همچنین موقع تست اولیه، بردبورد رو روی یک سطح کاملا صاف و بدون لرزش قرار بده تا داده‌های ژیروسکوپ به درستی کالیبره بشن. این کار باعث می‌شه وقتی مدار رو تو دستت می‌گیری، حرکت موس خیلی نرم و طبیعی باشه.

مرحله ۵

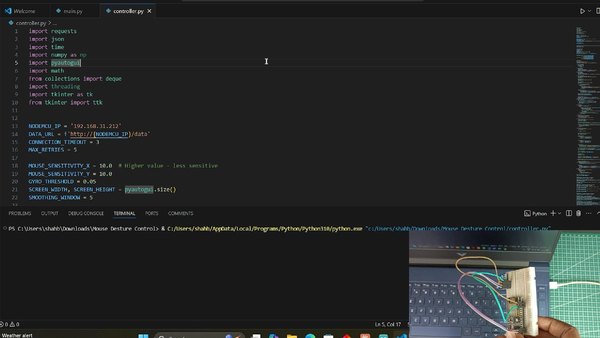

حرکت دادن نشانگر موس با دست

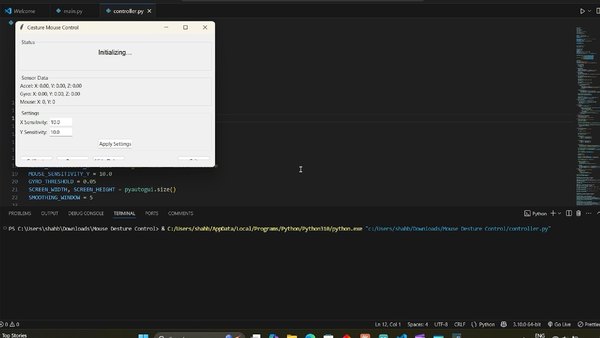

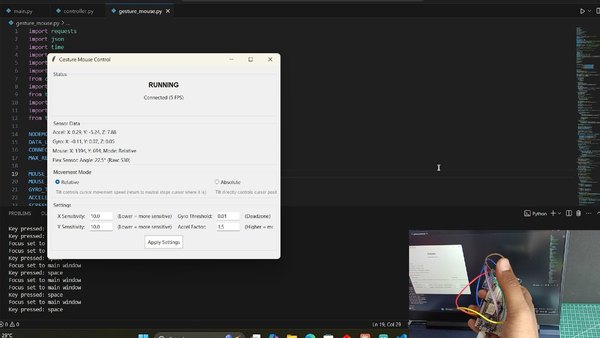

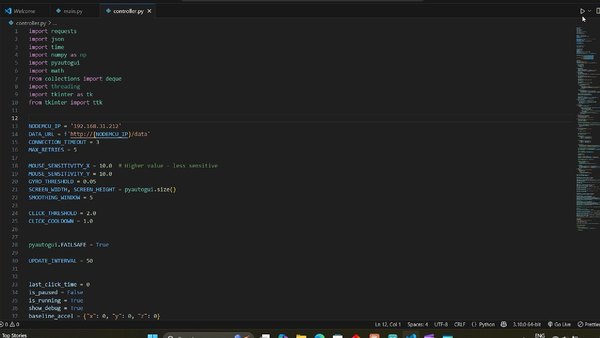

رسیدیم به جذاب‌ترین بخش کار؛ یعنی کنترل موس با حرکت دست! برای این کار باید کدهای نهایی رو اجرا کنیم:

اول کدهای آپدیت‌شده رو کپی کن و روی برد NodeMCU آپلود کن.

Arduino

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
// WiFi credentials
const char* ssid = "YourWiFiName"; // Replace with your WiFi network name
const char* password = "YourPassword"; // Replace with your WiFi password
// Use static IP to prevent IP address changes
IPAddress staticIP(192, 168, 31, 212); // The IP you want to assign to NodeMCU
IPAddress gateway(192, 168, 31, 1); // Your router's IP address (typical gateway)
IPAddress subnet(255, 255, 255, 0); // Subnet mask
IPAddress dns(8, 8, 8, 8); // DNS (Google's DNS)
ESP8266WebServer server(80);
Adafruit_MPU6050 mpu;
void setup() {
Serial.begin(115200);
delay(100); // Short delay for serial to initialize
Serial.println("\n\nMPU6050 Web Server Starting...");
// Initialize I2C for MPU6050
Wire.begin(D2, D1); // SDA=D2, SCL=D1
// Initialize MPU6050
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
Serial.println("Please check your wiring!");
while (1) {
delay(10);
}
}
Serial.println("MPU6050 Found!");
// Configure sensor settings
mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
// Configure WiFi in station mode with static IP
WiFi.mode(WIFI_STA);
WiFi.config(staticIP, gateway, subnet, dns); // Set static IP
WiFi.begin(ssid, password);
Serial.println("Connecting to WiFi...");
// Wait for connection with timeout
int timeout = 0;
while (WiFi.status() != WL_CONNECTED && timeout < 20) {
delay(500);
Serial.print(".");
timeout++;
}
if (WiFi.status() != WL_CONNECTED) {
Serial.println("\nFailed to connect to WiFi! Check credentials and try again.");
while(1) {
delay(1000);
}
}
Serial.println("");
Serial.print("Connected to WiFi network: ");
Serial.println(ssid);
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Define server routes
server.on("/", HTTP_GET, handleRoot);
server.on("/data", HTTP_GET, handleData);
server.onNotFound(handleNotFound);
// Start server
server.begin();
Serial.println("HTTP server started");
Serial.println("Web interface available at http://" + WiFi.localIP().toString());
Serial.println("Data endpoint available at http://" + WiFi.localIP().toString() + "/data");
}
void loop() {
server.handleClient();
delay(2); // Small delay to improve stability
}
void handleRoot() {
String html = "<!DOCTYPE html>\n";
html += "<html>\n";
html += "<head>\n";
html += "<title>MPU6050 Sensor Data</title>\n";
html += "<meta http-equiv='refresh' content='5'>\n"; // Auto-refresh page every 5 seconds
html += "<style>\n";
html += "body { font-family: Arial, sans-serif; margin: 20px; }\n";
html += "h1 { color: #0066cc; }\n";
html += "p { margin: 10px 0; }\n";
html += ".data { font-family: monospace; background-color: #f0f0f0; padding: 10px; border-radius: 5px; }\n";
html += "</style>\n";
html += "</head>\n";
html += "<body>\n";
html += "<h1>MPU6050 Sensor Web Server</h1>\n";
html += "<p>Server is running successfully!</p>\n";
html += "<p>Server IP: <strong>" + WiFi.localIP().toString() + "</strong></p>\n";
html += "<p>Get raw data at: <a href='/data'>/data</a> (JSON format)</p>\n";
// Get current sensor data
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
html += "<div class='data'>\n";
html += "<h2>Current Sensor Data:</h2>\n";
html += "<p>Accelerometer (m/s²):<br>\n";
html += "X: " + String(a.acceleration.x) + "<br>\n";
html += "Y: " + String(a.acceleration.y) + "<br>\n";
html += "Z: " + String(a.acceleration.z) + "</p>\n";
html += "<p>Gyroscope (rad/s):<br>\n";
html += "X: " + String(g.gyro.x) + "<br>\n";
html += "Y: " + String(g.gyro.y) + "<br>\n";
html += "Z: " + String(g.gyro.z) + "</p>\n";
html += "<p>Temperature: " + String(temp.temperature) + " °C</p>\n";
html += "</div>\n";
html += "</body>\n";
html += "</html>\n";
server.send(200, "text/html", html);
}
void handleData() {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
// Enable CORS to allow requests from any origin
server.sendHeader("Access-Control-Allow-Origin", "*");
server.sendHeader("Access-Control-Allow-Methods", "GET");
server.sendHeader("Access-Control-Max-Age", "10000");
server.sendHeader("Access-Control-Allow-Headers", "Content-Type");
// Create JSON response
String json = "{";
json += "\"accelerometer\": {";
json += "\"x\": " + String(a.acceleration.x) + ", ";
json += "\"y\": " + String(a.acceleration.y) + ", ";
json += "\"z\": " + String(a.acceleration.z);
json += "}, ";
json += "\"gyroscope\": {";
json += "\"x\": " + String(g.gyro.x) + ", ";
json += "\"y\": " + String(g.gyro.y) + ", ";
json += "\"z\": " + String(g.gyro.z);
json += "}, ";
json += "\"temperature\": " + String(temp.temperature);
json += "}";
server.send(200, "application/json", json);
}
void handleNotFound() {
String message = "File Not Found\n\n";
message += "URI: ";
message += server.uri();
message += "\nMethod: ";
message += (server.method() == HTTP_GET) ? "GET" : "POST";
message += "\nArguments: ";
message += server.args();
message += "\n";
for (uint8_t i = 0; i < server.args(); i++) {
message += " " + server.argName(i) + ": " + server.arg(i) + "\n";
}
server.send(404, "text/plain", message);
}

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
// WiFi credentials
const char* ssid = "YourWiFiName"; // Replace with your WiFi network name
const char* password = "YourPassword"; // Replace with your WiFi password
// Use static IP to prevent IP address changes
IPAddress staticIP(192, 168, 31, 212); // The IP you want to assign to NodeMCU
IPAddress gateway(192, 168, 31, 1); // Your router's IP address (typical gateway)
IPAddress subnet(255, 255, 255, 0); // Subnet mask
IPAddress dns(8, 8, 8, 8); // DNS (Google's DNS)
ESP8266WebServer server(80);
Adafruit_MPU6050 mpu;
void setup() {
Serial.begin(115200);
delay(100); // Short delay for serial to initialize
Serial.println("\n\nMPU6050 Web Server Starting...");
// Initialize I2C for MPU6050
Wire.begin(D2, D1); // SDA=D2, SCL=D1
// Initialize MPU6050
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
Serial.println("Please check your wiring!");
while (1) {
delay(10);
}
}
Serial.println("MPU6050 Found!");
// Configure sensor settings
mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
// Configure WiFi in station mode with static IP
WiFi.mode(WIFI_STA);
WiFi.config(staticIP, gateway, subnet, dns); // Set static IP
WiFi.begin(ssid, password);
Serial.println("Connecting to WiFi...");
// Wait for connection with timeout
int timeout = 0;
while (WiFi.status() != WL_CONNECTED && timeout < 20) {
delay(500);
Serial.print(".");
timeout++;
}
if (WiFi.status() != WL_CONNECTED) {
Serial.println("\nFailed to connect to WiFi! Check credentials and try again.");
while(1) {
delay(1000);
}
}
Serial.println("");
Serial.print("Connected to WiFi network: ");
Serial.println(ssid);
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Define server routes
server.on("/", HTTP_GET, handleRoot);
server.on("/data", HTTP_GET, handleData);
server.onNotFound(handleNotFound);
// Start server
server.begin();
Serial.println("HTTP server started");
Serial.println("Web interface available at http://" + WiFi.localIP().toString());
Serial.println("Data endpoint available at http://" + WiFi.localIP().toString() + "/data");
}
void loop() {
server.handleClient();
delay(2); // Small delay to improve stability
}
void handleRoot() {
String html = "<!DOCTYPE html>\n";
html += "<html>\n";
html += "<head>\n";
html += "<title>MPU6050 Sensor Data</title>\n";
html += "<meta http-equiv='refresh' content='5'>\n"; // Auto-refresh page every 5 seconds
html += "<style>\n";
html += "body { font-family: Arial, sans-serif; margin: 20px; }\n";
html += "h1 { color: #0066cc; }\n";
html += "p { margin: 10px 0; }\n";
html += ".data { font-family: monospace; background-color: #f0f0f0; padding: 10px; border-radius: 5px; }\n";
html += "</style>\n";
html += "</head>\n";
html += "<body>\n";
html += "<h1>MPU6050 Sensor Web Server</h1>\n";
html += "<p>Server is running successfully!</p>\n";
html += "<p>Server IP: <strong>" + WiFi.localIP().toString() + "</strong></p>\n";
html += "<p>Get raw data at: <a href='/data'>/data</a> (JSON format)</p>\n";
// Get current sensor data
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
html += "<div class='data'>\n";
html += "<h2>Current Sensor Data:</h2>\n";
html += "<p>Accelerometer (m/s²):<br>\n";
html += "X: " + String(a.acceleration.x) + "<br>\n";
html += "Y: " + String(a.acceleration.y) + "<br>\n";
html += "Z: " + String(a.acceleration.z) + "</p>\n";
html += "<p>Gyroscope (rad/s):<br>\n";
html += "X: " + String(g.gyro.x) + "<br>\n";
html += "Y: " + String(g.gyro.y) + "<br>\n";
html += "Z: " + String(g.gyro.z) + "</p>\n";
html += "<p>Temperature: " + String(temp.temperature) + " °C</p>\n";
html += "</div>\n";
html += "</body>\n";
html += "</html>\n";
server.send(200, "text/html", html);
}
void handleData() {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
// Enable CORS to allow requests from any origin
server.sendHeader("Access-Control-Allow-Origin", "*");
server.sendHeader("Access-Control-Allow-Methods", "GET");
server.sendHeader("Access-Control-Max-Age", "10000");
server.sendHeader("Access-Control-Allow-Headers", "Content-Type");
// Create JSON response
String json = "{";
json += "\"accelerometer\": {";
json += "\"x\": " + String(a.acceleration.x) + ", ";
json += "\"y\": " + String(a.acceleration.y) + ", ";
json += "\"z\": " + String(a.acceleration.z);
json += "}, ";
json += "\"gyroscope\": {";
json += "\"x\": " + String(g.gyro.x) + ", ";
json += "\"y\": " + String(g.gyro.y) + ", ";
json += "\"z\": " + String(g.gyro.z);
json += "}, ";
json += "\"temperature\": " + String(temp.temperature);
json += "}";
server.send(200, "application/json", json);
}
void handleNotFound() {
String message = "File Not Found\n\n";
message += "URI: ";
message += server.uri();
message += "\nMethod: ";
message += (server.method() == HTTP_GET) ? "GET" : "POST";
message += "\nArguments: ";
message += server.args();
message += "\n";
for (uint8_t i = 0; i < server.args(); i++) {
message += " " + server.argName(i) + ": " + server.arg(i) + "\n";
}
server.send(404, "text/plain", message);
}

حالا VS Code رو باز کن و اسکریپت زیر رو پیست کن. ما اینجا از کتابخونه pyautogui استفاده می‌کنیم تا داده‌های سنسور مستقیما به حرکت موس تبدیل بشن. منطق کار این‌طوریه که اگه سنسور رو به چپ خم کنی، نشانگر موس هم به چپ می‌ره و اگه به راست خم کنی، همون مسیر رو دنبال می‌کنه.

JavaScript

import requests
import json
import time
import numpy as np
import pyautogui
import math
from collections import deque
import threading
import tkinter as tk
from tkinter import ttk
# Configuration
NODEMCU_IP = '192.168.XX.XXX' # Your NodeMCU IP
DATA_URL = f'http://{NODEMCU_IP}/data'
CONNECTION_TIMEOUT = 3 # Increase timeout to 3 seconds
MAX_RETRIES = 5 # Maximum number of retries on connection failure
# Settings for mouse control
MOUSE_SENSITIVITY_X = 50.0 # Higher value = less sensitive
MOUSE_SENSITIVITY_Y = 50.0
GYRO_THRESHOLD = 0.05 # Minimum gyro movement to register (eliminates jitter)
SCREEN_WIDTH, SCREEN_HEIGHT = pyautogui.size()
SMOOTHING_WINDOW = 5 # Number of samples for smoothing
# For click detection
CLICK_THRESHOLD = 2.0 # Threshold for click detection (acceleration magnitude)
CLICK_COOLDOWN = 1.0 # Seconds between clicks to avoid accidental double-clicks
# For safety (prevent mouse from going crazy)
pyautogui.FAILSAFE = True # Move mouse to corner to abort
# For UI
UPDATE_INTERVAL = 50 # milliseconds
# Global variables
last_click_time = 0
is_paused = False
is_running = True
show_debug = True
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
calibration_samples = 20
mouse_pos = {"x": SCREEN_WIDTH // 2, "y": SCREEN_HEIGHT // 2}
# Smoothing buffers
accel_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
gyro_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
# Create UI
root = tk.Tk()
root.title("Gesture Mouse Control")
root.geometry("600x400")
root.protocol("WM_DELETE_WINDOW", lambda: set_running(False))
def set_running(state):
global is_running
is_running = state
if not state:
root.destroy()
def toggle_pause():
global is_paused
is_paused = not is_paused
pause_btn.config(text="Resume" if is_paused else "Pause")
status_var.set("PAUSED" if is_paused else "RUNNING")
def toggle_debug():
global show_debug
show_debug = not show_debug
debug_btn.config(text="Hide Debug" if show_debug else "Show Debug")
def start_calibration():
global baseline_accel, baseline_gyro
status_var.set("Calibrating... Don't move the sensor!")
root.update()
# Reset baselines
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
# Collect samples
accel_samples = {"x": [], "y": [], "z": []}
gyro_samples = {"x": [], "y": [], "z": []}
for _ in range(calibration_samples):
data = fetch_data()
if data:
for axis in ["x", "y", "z"]:
accel_samples[axis].append(data["accelerometer"][axis])
gyro_samples[axis].append(data["gyroscope"][axis])
time.sleep(0.1)
# Calculate averages
for axis in ["x", "y", "z"]:
if accel_samples[axis]: # Check if we got samples
baseline_accel[axis] = sum(accel_samples[axis]) / len(accel_samples[axis])
baseline_gyro[axis] = sum(gyro_samples[axis]) / len(gyro_samples[axis])
status_var.set("Calibration complete")
sensitivity_x_var.set(MOUSE_SENSITIVITY_X)
sensitivity_y_var.set(MOUSE_SENSITIVITY_Y)
# Reset position to center
global mouse_pos
mouse_pos = {"x": SCREEN_WIDTH // 2, "y": SCREEN_HEIGHT // 2}
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
def update_sensitivity():
global MOUSE_SENSITIVITY_X, MOUSE_SENSITIVITY_Y
try:
MOUSE_SENSITIVITY_X = float(sensitivity_x_var.get())
MOUSE_SENSITIVITY_Y = float(sensitivity_y_var.get())
except ValueError:
pass # Ignore invalid inputs
def fetch_data():
"""Fetch data from NodeMCU with retries"""
for attempt in range(MAX_RETRIES):
try:
response = requests.get(DATA_URL, timeout=CONNECTION_TIMEOUT)
if response.status_code == 200:
status_var.set("Connected")
return json.loads(response.text)
else:
status_var.set(f"Error: Server returned {response.status_code}")
time.sleep(0.5)
except requests.exceptions.RequestException as e:
status_var.set(f"Connection error: {type(e).__name__}")
time.sleep(0.5)
return None
def smooth_data(data, history_buffer):
"""Apply smoothing to sensor data"""
history_buffer.append(data)
return sum(history_buffer) / len(history_buffer)
def detect_click(accel_data):
"""Detect a click gesture based on acceleration"""
global last_click_time
current_time = time.time()
# Calculate acceleration magnitude
accel_mag = math.sqrt(accel_data["x"]**2 + accel_data["y"]**2 + accel_data["z"]**2)
# Check if it exceeds threshold and enough time has passed since last click
if accel_mag > CLICK_THRESHOLD and current_time - last_click_time > CLICK_COOLDOWN:
last_click_time = current_time
return True
return False
def process_sensor_data(data):
"""Process sensor data and control mouse"""
global mouse_pos
if not data or is_paused:
return
# Get accelerometer and gyroscope data
accel = data["accelerometer"]
gyro = data["gyroscope"]
# Apply calibration
calibrated_accel = {
"x": accel["x"] - baseline_accel["x"],
"y": accel["y"] - baseline_accel["y"],
"z": accel["z"] - baseline_accel["z"]
}
calibrated_gyro = {
"x": gyro["x"] - baseline_gyro["x"],
"y": gyro["y"] - baseline_gyro["y"],
"z": gyro["z"] - baseline_gyro["z"]
}
# Apply smoothing
for axis in ["x", "y", "z"]:
calibrated_accel[axis] = smooth_data(calibrated_accel[axis], accel_history[axis])
calibrated_gyro[axis] = smooth_data(calibrated_gyro[axis], gyro_history[axis])
# Calculate mouse movement - using gyro for more precise control
# Invert axes as needed based on sensor orientation
dx = -calibrated_gyro["y"] if abs(calibrated_gyro["y"]) > GYRO_THRESHOLD else 0
dy = calibrated_gyro["x"] if abs(calibrated_gyro["x"]) > GYRO_THRESHOLD else 0
# Scale the movement
dx = dx * (SCREEN_WIDTH / MOUSE_SENSITIVITY_X)
dy = dy * (SCREEN_HEIGHT / MOUSE_SENSITIVITY_Y)
# Update position
mouse_pos["x"] += dx
mouse_pos["y"] += dy
# Constrain to screen boundaries
mouse_pos["x"] = max(0, min(SCREEN_WIDTH - 1, mouse_pos["x"]))
mouse_pos["y"] = max(0, min(SCREEN_HEIGHT - 1, mouse_pos["y"]))
# Move the mouse
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
# Check for click gesture
if detect_click(calibrated_accel):
pyautogui.click()
click_label.config(text="CLICK!")
root.after(500, lambda: click_label.config(text=""))
# Update UI
if show_debug:
accel_label.config(text=f"Accel: X: {calibrated_accel['x']:.2f}, Y: {calibrated_accel['y']:.2f}, Z: {calibrated_accel['z']:.2f}")
gyro_label.config(text=f"Gyro: X: {calibrated_gyro['x']:.2f}, Y: {calibrated_gyro['y']:.2f}, Z: {calibrated_gyro['z']:.2f}")
mouse_label.config(text=f"Mouse: X: {mouse_pos['x']:.0f}, Y: {mouse_pos['y']:.0f}")
def update_ui():
"""Update UI and process data periodically"""
if is_running:
data = fetch_data()
if data:
process_sensor_data(data)
root.after(UPDATE_INTERVAL, update_ui)
# Create UI elements
frame = ttk.Frame(root, padding="10")
frame.pack(fill=tk.BOTH, expand=True)
# Status
status_frame = ttk.LabelFrame(frame, text="Status")
status_frame.pack(fill=tk.X, expand=True, pady=5)
status_var = tk.StringVar(value="Initializing...")
status_label = ttk.Label(status_frame, textvariable=status_var, font=("Arial", 12))
status_label.pack(pady=5)
click_label = ttk.Label(status_frame, text="", font=("Arial", 16, "bold"), foreground="red")
click_label.pack()
# Debug info
debug_frame = ttk.LabelFrame(frame, text="Sensor Data")
debug_frame.pack(fill=tk.X, expand=True, pady=5)
accel_label = ttk.Label(debug_frame, text="Accel: X: 0.00, Y: 0.00, Z: 0.00")
accel_label.pack(anchor=tk.W)
gyro_label = ttk.Label(debug_frame, text="Gyro: X: 0.00, Y: 0.00, Z: 0.00")
gyro_label.pack(anchor=tk.W)
mouse_label = ttk.Label(debug_frame, text="Mouse: X: 0, Y: 0")
mouse_label.pack(anchor=tk.W)
# Settings
settings_frame = ttk.LabelFrame(frame, text="Settings")
settings_frame.pack(fill=tk.X, expand=True, pady=5)
# X sensitivity
sensitivity_x_frame = ttk.Frame(settings_frame)
sensitivity_x_frame.pack(fill=tk.X, expand=True, pady=2)
ttk.Label(sensitivity_x_frame, text="X Sensitivity:").pack(side=tk.LEFT)
sensitivity_x_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_X))
sensitivity_x_entry = ttk.Entry(sensitivity_x_frame, textvariable=sensitivity_x_var, width=8)
sensitivity_x_entry.pack(side=tk.LEFT, padx=5)
# Y sensitivity
sensitivity_y_frame = ttk.Frame(settings_frame)
sensitivity_y_frame.pack(fill=tk.X, expand=True, pady=2)
ttk.Label(sensitivity_y_frame, text="Y Sensitivity:").pack(side=tk.LEFT)
sensitivity_y_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_Y))
sensitivity_y_entry = ttk.Entry(sensitivity_y_frame, textvariable=sensitivity_y_var, width=8)
sensitivity_y_entry.pack(side=tk.LEFT, padx=5)
# Apply button
ttk.Button(settings_frame, text="Apply Settings", command=update_sensitivity).pack(pady=5)
# Buttons
buttons_frame = ttk.Frame(frame)
buttons_frame.pack(fill=tk.X, expand=True, pady=10)
calibrate_btn = ttk.Button(buttons_frame, text="Calibrate", command=start_calibration)
calibrate_btn.pack(side=tk.LEFT, padx=5)
pause_btn = ttk.Button(buttons_frame, text="Pause", command=toggle_pause)
pause_btn.pack(side=tk.LEFT, padx=5)
debug_btn = ttk.Button(buttons_frame, text="Hide Debug", command=toggle_debug)
debug_btn.pack(side=tk.LEFT, padx=5)
ttk.Button(buttons_frame, text="Exit", command=lambda: set_running(False)).pack(side=tk.RIGHT, padx=5)
# Instructions
instructions = """
INSTRUCTIONS:
1. Click 'Calibrate' and keep the sensor still
2. Tilt to move cursor
3. Quick shake for mouse click
4. Adjust sensitivity if needed
"""
ttk.Label(frame, text=instructions, justify=tk.LEFT).pack(anchor=tk.W, pady=5)
# Start the data processing
root.after(1000, update_ui)
if __name__ == "__main__":
# Center mouse position at start
pyautogui.moveTo(SCREEN_WIDTH // 2, SCREEN_HEIGHT // 2)
# Start UI
root.mainloop()

import requests
import json
import time
import numpy as np
import pyautogui
import math
from collections import deque
import threading
import tkinter as tk
from tkinter import ttk
# Configuration
NODEMCU_IP = '192.168.XX.XXX' # Your NodeMCU IP
DATA_URL = f'http://{NODEMCU_IP}/data'
CONNECTION_TIMEOUT = 3 # Increase timeout to 3 seconds
MAX_RETRIES = 5 # Maximum number of retries on connection failure
# Settings for mouse control
MOUSE_SENSITIVITY_X = 50.0 # Higher value = less sensitive
MOUSE_SENSITIVITY_Y = 50.0
GYRO_THRESHOLD = 0.05 # Minimum gyro movement to register (eliminates jitter)
SCREEN_WIDTH, SCREEN_HEIGHT = pyautogui.size()
SMOOTHING_WINDOW = 5 # Number of samples for smoothing
# For click detection
CLICK_THRESHOLD = 2.0 # Threshold for click detection (acceleration magnitude)
CLICK_COOLDOWN = 1.0 # Seconds between clicks to avoid accidental double-clicks
# For safety (prevent mouse from going crazy)
pyautogui.FAILSAFE = True # Move mouse to corner to abort
# For UI
UPDATE_INTERVAL = 50 # milliseconds
# Global variables
last_click_time = 0
is_paused = False
is_running = True
show_debug = True
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
calibration_samples = 20
mouse_pos = {"x": SCREEN_WIDTH // 2, "y": SCREEN_HEIGHT // 2}
# Smoothing buffers
accel_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
gyro_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
# Create UI
root = tk.Tk()
root.title("Gesture Mouse Control")
root.geometry("600x400")
root.protocol("WM_DELETE_WINDOW", lambda: set_running(False))
def set_running(state):
global is_running
is_running = state
if not state:
root.destroy()
def toggle_pause():
global is_paused
is_paused = not is_paused
pause_btn.config(text="Resume" if is_paused else "Pause")
status_var.set("PAUSED" if is_paused else "RUNNING")
def toggle_debug():
global show_debug
show_debug = not show_debug
debug_btn.config(text="Hide Debug" if show_debug else "Show Debug")
def start_calibration():
global baseline_accel, baseline_gyro
status_var.set("Calibrating... Don't move the sensor!")
root.update()
# Reset baselines
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
# Collect samples
accel_samples = {"x": [], "y": [], "z": []}
gyro_samples = {"x": [], "y": [], "z": []}
for _ in range(calibration_samples):
data = fetch_data()
if data:
for axis in ["x", "y", "z"]:
accel_samples[axis].append(data["accelerometer"][axis])
gyro_samples[axis].append(data["gyroscope"][axis])
time.sleep(0.1)
# Calculate averages
for axis in ["x", "y", "z"]:
if accel_samples[axis]: # Check if we got samples
baseline_accel[axis] = sum(accel_samples[axis]) / len(accel_samples[axis])
baseline_gyro[axis] = sum(gyro_samples[axis]) / len(gyro_samples[axis])
status_var.set("Calibration complete")
sensitivity_x_var.set(MOUSE_SENSITIVITY_X)
sensitivity_y_var.set(MOUSE_SENSITIVITY_Y)
# Reset position to center
global mouse_pos
mouse_pos = {"x": SCREEN_WIDTH // 2, "y": SCREEN_HEIGHT // 2}
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
def update_sensitivity():
global MOUSE_SENSITIVITY_X, MOUSE_SENSITIVITY_Y
try:
MOUSE_SENSITIVITY_X = float(sensitivity_x_var.get())
MOUSE_SENSITIVITY_Y = float(sensitivity_y_var.get())
except ValueError:
pass # Ignore invalid inputs
def fetch_data():
"""Fetch data from NodeMCU with retries"""
for attempt in range(MAX_RETRIES):
try:
response = requests.get(DATA_URL, timeout=CONNECTION_TIMEOUT)
if response.status_code == 200:
status_var.set("Connected")
return json.loads(response.text)
else:
status_var.set(f"Error: Server returned {response.status_code}")
time.sleep(0.5)
except requests.exceptions.RequestException as e:
status_var.set(f"Connection error: {type(e).__name__}")
time.sleep(0.5)
return None
def smooth_data(data, history_buffer):
"""Apply smoothing to sensor data"""
history_buffer.append(data)
return sum(history_buffer) / len(history_buffer)
def detect_click(accel_data):
"""Detect a click gesture based on acceleration"""
global last_click_time
current_time = time.time()
# Calculate acceleration magnitude
accel_mag = math.sqrt(accel_data["x"]**2 + accel_data["y"]**2 + accel_data["z"]**2)
# Check if it exceeds threshold and enough time has passed since last click
if accel_mag > CLICK_THRESHOLD and current_time - last_click_time > CLICK_COOLDOWN:
last_click_time = current_time
return True
return False
def process_sensor_data(data):
"""Process sensor data and control mouse"""
global mouse_pos
if not data or is_paused:
return
# Get accelerometer and gyroscope data
accel = data["accelerometer"]
gyro = data["gyroscope"]
# Apply calibration
calibrated_accel = {
"x": accel["x"] - baseline_accel["x"],
"y": accel["y"] - baseline_accel["y"],
"z": accel["z"] - baseline_accel["z"]
}
calibrated_gyro = {
"x": gyro["x"] - baseline_gyro["x"],
"y": gyro["y"] - baseline_gyro["y"],
"z": gyro["z"] - baseline_gyro["z"]
}
# Apply smoothing
for axis in ["x", "y", "z"]:
calibrated_accel[axis] = smooth_data(calibrated_accel[axis], accel_history[axis])
calibrated_gyro[axis] = smooth_data(calibrated_gyro[axis], gyro_history[axis])
# Calculate mouse movement - using gyro for more precise control
# Invert axes as needed based on sensor orientation
dx = -calibrated_gyro["y"] if abs(calibrated_gyro["y"]) > GYRO_THRESHOLD else 0
dy = calibrated_gyro["x"] if abs(calibrated_gyro["x"]) > GYRO_THRESHOLD else 0
# Scale the movement
dx = dx * (SCREEN_WIDTH / MOUSE_SENSITIVITY_X)
dy = dy * (SCREEN_HEIGHT / MOUSE_SENSITIVITY_Y)
# Update position
mouse_pos["x"] += dx
mouse_pos["y"] += dy
# Constrain to screen boundaries
mouse_pos["x"] = max(0, min(SCREEN_WIDTH - 1, mouse_pos["x"]))
mouse_pos["y"] = max(0, min(SCREEN_HEIGHT - 1, mouse_pos["y"]))
# Move the mouse
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
# Check for click gesture
if detect_click(calibrated_accel):
pyautogui.click()
click_label.config(text="CLICK!")
root.after(500, lambda: click_label.config(text=""))
# Update UI
if show_debug:
accel_label.config(text=f"Accel: X: {calibrated_accel['x']:.2f}, Y: {calibrated_accel['y']:.2f}, Z: {calibrated_accel['z']:.2f}")
gyro_label.config(text=f"Gyro: X: {calibrated_gyro['x']:.2f}, Y: {calibrated_gyro['y']:.2f}, Z: {calibrated_gyro['z']:.2f}")
mouse_label.config(text=f"Mouse: X: {mouse_pos['x']:.0f}, Y: {mouse_pos['y']:.0f}")
def update_ui():
"""Update UI and process data periodically"""
if is_running:
data = fetch_data()
if data:
process_sensor_data(data)
root.after(UPDATE_INTERVAL, update_ui)
# Create UI elements
frame = ttk.Frame(root, padding="10")
frame.pack(fill=tk.BOTH, expand=True)
# Status
status_frame = ttk.LabelFrame(frame, text="Status")
status_frame.pack(fill=tk.X, expand=True, pady=5)
status_var = tk.StringVar(value="Initializing...")
status_label = ttk.Label(status_frame, textvariable=status_var, font=("Arial", 12))
status_label.pack(pady=5)
click_label = ttk.Label(status_frame, text="", font=("Arial", 16, "bold"), foreground="red")
click_label.pack()
# Debug info
debug_frame = ttk.LabelFrame(frame, text="Sensor Data")
debug_frame.pack(fill=tk.X, expand=True, pady=5)
accel_label = ttk.Label(debug_frame, text="Accel: X: 0.00, Y: 0.00, Z: 0.00")
accel_label.pack(anchor=tk.W)
gyro_label = ttk.Label(debug_frame, text="Gyro: X: 0.00, Y: 0.00, Z: 0.00")
gyro_label.pack(anchor=tk.W)
mouse_label = ttk.Label(debug_frame, text="Mouse: X: 0, Y: 0")
mouse_label.pack(anchor=tk.W)
# Settings
settings_frame = ttk.LabelFrame(frame, text="Settings")
settings_frame.pack(fill=tk.X, expand=True, pady=5)
# X sensitivity
sensitivity_x_frame = ttk.Frame(settings_frame)
sensitivity_x_frame.pack(fill=tk.X, expand=True, pady=2)
ttk.Label(sensitivity_x_frame, text="X Sensitivity:").pack(side=tk.LEFT)
sensitivity_x_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_X))
sensitivity_x_entry = ttk.Entry(sensitivity_x_frame, textvariable=sensitivity_x_var, width=8)
sensitivity_x_entry.pack(side=tk.LEFT, padx=5)
# Y sensitivity
sensitivity_y_frame = ttk.Frame(settings_frame)
sensitivity_y_frame.pack(fill=tk.X, expand=True, pady=2)
ttk.Label(sensitivity_y_frame, text="Y Sensitivity:").pack(side=tk.LEFT)
sensitivity_y_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_Y))
sensitivity_y_entry = ttk.Entry(sensitivity_y_frame, textvariable=sensitivity_y_var, width=8)
sensitivity_y_entry.pack(side=tk.LEFT, padx=5)
# Apply button
ttk.Button(settings_frame, text="Apply Settings", command=update_sensitivity).pack(pady=5)
# Buttons
buttons_frame = ttk.Frame(frame)
buttons_frame.pack(fill=tk.X, expand=True, pady=10)
calibrate_btn = ttk.Button(buttons_frame, text="Calibrate", command=start_calibration)
calibrate_btn.pack(side=tk.LEFT, padx=5)
pause_btn = ttk.Button(buttons_frame, text="Pause", command=toggle_pause)
pause_btn.pack(side=tk.LEFT, padx=5)
debug_btn = ttk.Button(buttons_frame, text="Hide Debug", command=toggle_debug)
debug_btn.pack(side=tk.LEFT, padx=5)
ttk.Button(buttons_frame, text="Exit", command=lambda: set_running(False)).pack(side=tk.RIGHT, padx=5)
# Instructions
instructions = """
INSTRUCTIONS:
1. Click 'Calibrate' and keep the sensor still
2. Tilt to move cursor
3. Quick shake for mouse click
4. Adjust sensitivity if needed
"""
ttk.Label(frame, text=instructions, justify=tk.LEFT).pack(anchor=tk.W, pady=5)
# Start the data processing
root.after(1000, update_ui)
if __name__ == "__main__":
# Center mouse position at start
pyautogui.moveTo(SCREEN_WIDTH // 2, SCREEN_HEIGHT // 2)
# Start UI
root.mainloop()

مرحله ۶

اضافه کردن سنسور خمش برای کلیک راست

خب، حرکت دادن موس عالی بود، اما بدون قابلیت کلیک کردن فایده‌ای نداره! تا اینجا ماژول‌ها رو تنظیم کردیم که نشانگر حرکت کنه. حالا می‌خوایم یک سنسور خمش (Flex Sensor) اضافه کنیم تا وظیفه کلیک راست رو برامون انجام بده. برای راه‌اندازی این سنسور مراحل زیر رو دنبال کن:

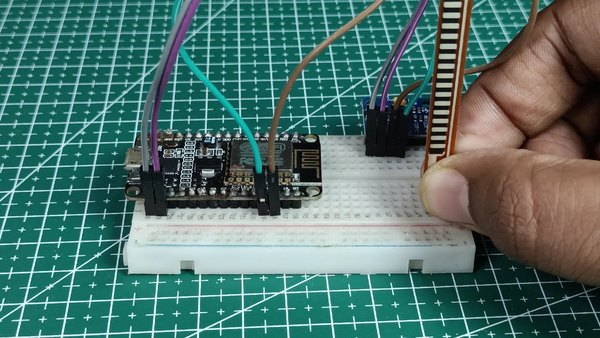

پایه مثبت سنسور خمش رو به پین 3.3 ولت روی NodeMCU وصل کن تا تغذیه سنسور تامین بشه.

اتصال خروجی سنسور:

پایه منفی سنسور خمش رو به پین A0 (آنالوگ) برد NodeMCU متصل کن. چون سنسور خمش داده‌های آنالوگ تولید می‌کنه، پین A0 بهترین انتخاب برای خوندن این تغییراته.

استفاده از مقاومت برای تقسیم ولتاژ:

یک مقاومت 47 کیلواهم بین پایه منفی سنسور خمش و پین GND قرار بده. این کار یک مدار تقسیم ولتاژ می‌سازه تا برد بتونه تغییرات مقاومت سنسور رو به درستی تشخیص بده.

آپلود کدهای نهایی آردوینو:

کدهای جدید رو روی برد آپلود کن تا بتونه تغییرات سنسور خمش رو بخونه و سیگنال کلیک رو به کامپیوتر بفرسته.

به‌روزرسانی اسکریپت پایتون:

در نهایت، اسکریپت پایتون رو با کدهای زیر آپدیت کن تا ارتباط بین کلیک سخت‌افزاری و سیستم‌عامل برقرار بشه.

JavaScript

import requests
import json
import time
import numpy as np
import pyautogui
import math
from collections import deque
import tkinter as tk
from tkinter import ttk
import threading
import sys
from tkinter import messagebox
NODEMCU_IP = '192.168.31.212' # Replace with your NodeMCU IP
DATA_URL = f'http://{NODEMCU_IP}/data'
CONNECTION_TIMEOUT = 3
MAX_RETRIES = 5
MOUSE_SENSITIVITY_X = 10.0
MOUSE_SENSITIVITY_Y = 10.0
GYRO_THRESHOLD = 0.01 # Minimum gyro movement to register (eliminates jitter)
ACCELERATION_FACTOR = 2 # Exponential acceleration for faster movements
SCREEN_WIDTH, SCREEN_HEIGHT = pyautogui.size()
SMOOTHING_WINDOW = 5 # Number of samples for smoothing
# Movement modes
MODE_ABSOLUTE = "Absolute" # Direct mapping of tilt to screen position
MODE_RELATIVE = "Relative" # Tilt controls velocity, not position
MODE_HYBRID = "Hybrid" # A mix of both with auto-centering
# For safety (prevent mouse from going crazy)
pyautogui.FAILSAFE = True # Move mouse to corner to abort
# For UI
UPDATE_INTERVAL = 25 # milliseconds (faster updates)
# Global variables
is_paused = False
is_running = True
show_debug = True
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
calibration_samples = 20
mouse_pos = {"x": pyautogui.position()[0], "y": pyautogui.position()[1]}
movement_mode = MODE_RELATIVE # Start with relative mode by default
# Flex sensor readings
flex_angle = 0
flex_raw = 0
# Debug variables
last_data_time = 0
fps_counter = 0
fps = 0
# Smoothing buffers
accel_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
gyro_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
# Create UI
root = tk.Tk()
root.title("Gesture Mouse Control")
root.geometry("700x580")
root.protocol("WM_DELETE_WINDOW", lambda: set_running(False))
# Style configuration for a more modern look
style = ttk.Style()
style.configure("TButton", padding=6, relief="flat", background="#ccc")
style.configure("TLabel", padding=2)
style.configure("TFrame", padding=5)
def set_running(state):
global is_running
is_running = state
if not state:
root.destroy()
sys.exit(0)
def toggle_pause():
global is_paused
is_paused = not is_paused
pause_btn.config(text="Resume" if is_paused else "Pause")
status_var.set("PAUSED" if is_paused else "RUNNING")
def toggle_debug():
global show_debug
show_debug = not show_debug
debug_btn.config(text="Hide Debug" if show_debug else "Show Debug")
if show_debug:
debug_frame.pack(fill=tk.X, expand=True, pady=5)
else:
debug_frame.pack_forget()
def change_movement_mode(mode):
global movement_mode
movement_mode = mode
status_var.set(f"Mode: {movement_mode}")
# Update radio buttons
mode_var.set(mode)
# Clear movement history when changing modes
for axis in ["x", "y", "z"]:
accel_history[axis].clear()
gyro_history[axis].clear()
def start_calibration():
global baseline_accel, baseline_gyro
status_var.set("Calibrating... Don't move the sensor!")
root.update()
# Reset baselines
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
# Collect samples
accel_samples = {"x": [], "y": [], "z": []}
gyro_samples = {"x": [], "y": [], "z": []}
# Progress bar for calibration
progress = ttk.Progressbar(status_frame, length=200, mode="determinate")
progress.pack(pady=5)
for i in range(calibration_samples):
data = fetch_data()
if data:
for axis in ["x", "y", "z"]:
accel_samples[axis].append(data["accelerometer"][axis])
gyro_samples[axis].append(data["gyroscope"][axis])
# Update progress bar
progress["value"] = (i + 1) / calibration_samples * 100
root.update_idletasks()
time.sleep(0.1)
# Calculate averages
for axis in ["x", "y", "z"]:
if accel_samples[axis]: # Check if we got samples
baseline_accel[axis] = sum(accel_samples[axis]) / len(accel_samples[axis])
baseline_gyro[axis] = sum(gyro_samples[axis]) / len(gyro_samples[axis])
progress.destroy()
status_var.set("Calibration complete")
# Update settings display
sensitivity_x_var.set(MOUSE_SENSITIVITY_X)
sensitivity_y_var.set(MOUSE_SENSITIVITY_Y)
threshold_var.set(GYRO_THRESHOLD)
acceleration_var.set(ACCELERATION_FACTOR)
# Reset position to current mouse position
global mouse_pos
current_x, current_y = pyautogui.position()
mouse_pos = {"x": current_x, "y": current_y}
def update_sensitivity():
global MOUSE_SENSITIVITY_X, MOUSE_SENSITIVITY_Y, GYRO_THRESHOLD, ACCELERATION_FACTOR
try:
MOUSE_SENSITIVITY_X = float(sensitivity_x_var.get())
MOUSE_SENSITIVITY_Y = float(sensitivity_y_var.get())
GYRO_THRESHOLD = float(threshold_var.get())
ACCELERATION_FACTOR = float(acceleration_var.get())
status_var.set("Settings updated")
except ValueError:
messagebox.showerror("Invalid Input", "Please enter valid numbers for sensitivity values")
def fetch_data():
"""Fetch data from NodeMCU with retries"""
global fps_counter, last_data_time, fps
# Calculate FPS (Frames Per Second / Data updates per second)
current_time = time.time()
fps_counter += 1
if current_time - last_data_time >= 1.0:
fps = fps_counter
fps_counter = 0
last_data_time = current_time
for attempt in range(MAX_RETRIES):
try:
response = requests.get(DATA_URL, timeout=CONNECTION_TIMEOUT)
if response.status_code == 200:
connection_status_var.set(f"Connected ({fps} FPS)")
return json.loads(response.text)
else:
connection_status_var.set(f"Error: HTTP {response.status_code}")
time.sleep(0.5)
except requests.exceptions.RequestException as e:
connection_status_var.set(f"Connection error: {type(e).__name__}")
time.sleep(0.5)
return None
def smooth_data(data, history_buffer):
"""Apply smoothing to sensor data"""
history_buffer.append(data)
return sum(history_buffer) / len(history_buffer)
def apply_acceleration(value, threshold):
"""Apply non-linear acceleration to movements for better control"""
if abs(value) <= threshold:
return 0 # Filter out minor movements
# The further from threshold, the more acceleration applies
sign = 1 if value > 0 else -1
normalized = abs(value) - threshold
return sign * (normalized ** ACCELERATION_FACTOR)
def process_sensor_data(data):
"""Process sensor data and control mouse"""
global mouse_pos, flex_angle, flex_raw
if not data or is_paused:
return
# Get accelerometer and gyroscope data
accel = data["accelerometer"]
gyro = data["gyroscope"]
# Get flex sensor data if available
if "flex" in data:
flex_angle = data["flex"]["angle"]
flex_raw = data["flex"].get("raw", 0)
# Check if click is detected from NodeMCU
if data["flex"]["click"]:
pyautogui.click()
click_label.config(text="CLICK!")
root.after(500, lambda: click_label.config(text=""))
# Apply calibration
calibrated_accel = {
"x": accel["x"] - baseline_accel["x"],
"y": accel["y"] - baseline_accel["y"],
"z": accel["z"] - baseline_accel["z"]
}
calibrated_gyro = {
"x": gyro["x"] - baseline_gyro["x"],
"y": gyro["y"] - baseline_gyro["y"],
"z": gyro["z"] - baseline_gyro["z"]
}
# Apply smoothing to reduce jitter
for axis in ["x", "y", "z"]:
calibrated_accel[axis] = smooth_data(calibrated_accel[axis], accel_history[axis])
calibrated_gyro[axis] = smooth_data(calibrated_gyro[axis], gyro_history[axis])
# Calculate mouse movement based on the selected mode
dx, dy = 0, 0
if movement_mode == MODE_ABSOLUTE:
# Absolute mode: Map tilt angle directly to screen position
# This is similar to your original code
dx = -calibrated_gyro["y"] if abs(calibrated_gyro["y"]) > GYRO_THRESHOLD else 0
dy = calibrated_gyro["x"] if abs(calibrated_gyro["x"]) > GYRO_THRESHOLD else 0
# Scale the movement
dx = dx * (SCREEN_WIDTH / MOUSE_SENSITIVITY_X)
dy = dy * (SCREEN_HEIGHT / MOUSE_SENSITIVITY_Y)
# Update position
mouse_pos["x"] += dx
mouse_pos["y"] += dy
# When MODE_RELATIVE is selected, replace the existing relative mode implementation with this:
elif movement_mode == MODE_RELATIVE:
# Get current gyroscope values
gyro_x = calibrated_gyro["x"]
gyro_y = calibrated_gyro["y"]
# Initialize movement deltas
dx = 0
dy = 0
# Only process movement if above threshold to eliminate drift
# This is key to keeping cursor in place when sensor is in neutral position
if abs(gyro_y) > GYRO_THRESHOLD:
# Invert Y axis for natural movement direction
dx = -gyro_y
if abs(gyro_x) > GYRO_THRESHOLD:
dy = gyro_x
# Apply the requested amplification factor (200.0) to make movements more responsive
# This makes small tilts translate to meaningful cursor movement
amplification_factor = 200.0
# Apply amplification and sensitivity adjustments
if abs(dx) > 0:
dx_sign = 1 if dx > 0 else -1
dx = dx_sign * ((abs(dx) * amplification_factor) / MOUSE_SENSITIVITY_X)
if abs(dy) > 0:
dy_sign = 1 if dy > 0 else -1
dy = dy_sign * ((abs(dy) * amplification_factor) / MOUSE_SENSITIVITY_Y)
# Apply exponential scaling for larger movements
# This gives finer control for small movements while allowing fast traversal with larger tilts
if abs(dx) > 1.0:
dx = dx * (abs(dx) ** (ACCELERATION_FACTOR - 1.0))
if abs(dy) > 1.0:
dy = dy * (abs(dy) ** (ACCELERATION_FACTOR - 1.0))
# Get current actual mouse position
current_x, current_y = pyautogui.position()
# Update position with calculated movement
new_x = current_x + dx
new_y = current_y + dy
# Update stored mouse position
mouse_pos["x"] = new_x
mouse_pos["y"] = new_y
else:
# Normal movement when tilted
dx = dx * (12.0 / MOUSE_SENSITIVITY_X)
dy = dy * (12.0 / MOUSE_SENSITIVITY_Y)
current_x, current_y = pyautogui.position()
mouse_pos["x"] = current_x + dx
mouse_pos["y"] = current_y + dy
# Constrain to screen boundaries
mouse_pos["x"] = max(0, min(SCREEN_WIDTH - 1, mouse_pos["x"]))
mouse_pos["y"] = max(0, min(SCREEN_HEIGHT - 1, mouse_pos["y"]))
# Move the mouse
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
# Update UI
if show_debug:
accel_label.config(text=f"Accel: X: {calibrated_accel['x']:.2f}, Y: {calibrated_accel['y']:.2f}, Z: {calibrated_accel['z']:.2f}")
gyro_label.config(text=f"Gyro: X: {calibrated_gyro['x']:.2f}, Y: {calibrated_gyro['y']:.2f}, Z: {calibrated_gyro['z']:.2f}")
mouse_label.config(text=f"Mouse: X: {mouse_pos['x']:.0f}, Y: {mouse_pos['y']:.0f}, Mode: {movement_mode}")
flex_label.config(text=f"Flex Sensor: Angle: {flex_angle:.1f}° (Raw: {flex_raw})")
def update_ui():
"""Update UI and process data periodically"""
if is_running:
try:
data = fetch_data()
if data:
process_sensor_data(data)
except Exception as e:
error_msg = str(e)
if len(error_msg) > 50:
error_msg = error_msg[:50] + "..."
status_var.set(f"Error: {error_msg}")
finally:
root.after(UPDATE_INTERVAL, update_ui)
# Create UI elements
main_frame = ttk.Frame(root, padding="10")
main_frame.pack(fill=tk.BOTH, expand=True)
# Status frame
status_frame = ttk.LabelFrame(main_frame, text="Status")
status_frame.pack(fill=tk.X, expand=True, pady=5)
status_var = tk.StringVar(value=f"Mode: {movement_mode}")
status_label = ttk.Label(status_frame, textvariable=status_var, font=("Arial", 12, "bold"))
status_label.pack(pady=5)
connection_status_var = tk.StringVar(value="Initializing...")
connection_status_label = ttk.Label(status_frame, textvariable=connection_status_var)
connection_status_label.pack(pady=2)
click_label = ttk.Label(status_frame, text="", font=("Arial", 16, "bold"), foreground="red")
click_label.pack()
# Debug info
debug_frame = ttk.LabelFrame(main_frame, text="Sensor Data")
if show_debug:
debug_frame.pack(fill=tk.X, expand=True, pady=5)
accel_label = ttk.Label(debug_frame, text="Accel: X: 0.00, Y: 0.00, Z: 0.00")
accel_label.pack(anchor=tk.W)
gyro_label = ttk.Label(debug_frame, text="Gyro: X: 0.00, Y: 0.00, Z: 0.00")
gyro_label.pack(anchor=tk.W)
mouse_label = ttk.Label(debug_frame, text="Mouse: X: 0, Y: 0")
mouse_label.pack(anchor=tk.W)
flex_label = ttk.Label(debug_frame, text="Flex Sensor: Angle: 0.00° (Raw: 0)")
flex_label.pack(anchor=tk.W)
# Movement mode selection
mode_frame = ttk.LabelFrame(main_frame, text="Movement Mode")
mode_frame.pack(fill=tk.X, expand=True, pady=5)
mode_var = tk.StringVar(value=movement_mode)
mode_info = {
MODE_ABSOLUTE: "Tilt directly controls cursor position (return to neutral brings cursor to center)",
MODE_RELATIVE: "Tilt controls cursor movement speed (return to neutral stops cursor where it is)",
MODE_HYBRID: "Combines features of both modes for more natural control"
}
for idx, mode in enumerate([MODE_RELATIVE, MODE_ABSOLUTE, MODE_HYBRID]):
mode_radio = ttk.Radiobutton(
mode_frame,
text=mode,
variable=mode_var,
value=mode,
command=lambda m=mode: change_movement_mode(m)
)
mode_radio.grid(row=0, column=idx, padx=10, pady=5, sticky=tk.W)
# Add tooltip-like description
ttk.Label(mode_frame, text=mode_info[mode], font=("Arial", 8), foreground="gray").grid(
row=1, column=idx, padx=10, pady=(0, 5), sticky=tk.W
)
# Settings
settings_frame = ttk.LabelFrame(main_frame, text="Settings")
settings_frame.pack(fill=tk.X, expand=True, pady=5)
settings_grid = ttk.Frame(settings_frame)
settings_grid.pack(fill=tk.X, expand=True, padx=10, pady=5)
# X sensitivity
ttk.Label(settings_grid, text="X Sensitivity:").grid(row=0, column=0, sticky=tk.W, padx=5, pady=2)
sensitivity_x_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_X))
sensitivity_x_entry = ttk.Entry(settings_grid, textvariable=sensitivity_x_var, width=8)
sensitivity_x_entry.grid(row=0, column=1, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Lower = more sensitive)").grid(row=0, column=2, sticky=tk.W, padx=5, pady=2)
# Y sensitivity
ttk.Label(settings_grid, text="Y Sensitivity:").grid(row=1, column=0, sticky=tk.W, padx=5, pady=2)
sensitivity_y_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_Y))
sensitivity_y_entry = ttk.Entry(settings_grid, textvariable=sensitivity_y_var, width=8)
sensitivity_y_entry.grid(row=1, column=1, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Lower = more sensitive)").grid(row=1, column=2, sticky=tk.W, padx=5, pady=2)
# Gyro threshold
ttk.Label(settings_grid, text="Gyro Threshold:").grid(row=0, column=3, sticky=tk.W, padx=5, pady=2)
threshold_var = tk.StringVar(value=str(GYRO_THRESHOLD))
threshold_entry = ttk.Entry(settings_grid, textvariable=threshold_var, width=8)
threshold_entry.grid(row=0, column=4, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Deadzone)").grid(row=0, column=5, sticky=tk.W, padx=5, pady=2)
# Acceleration factor
ttk.Label(settings_grid, text="Accel Factor:").grid(row=1, column=3, sticky=tk.W, padx=5, pady=2)
acceleration_var = tk.StringVar(value=str(ACCELERATION_FACTOR))
acceleration_entry = ttk.Entry(settings_grid, textvariable=acceleration_var, width=8)
acceleration_entry.grid(row=1, column=4, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Higher = more acceleration)").grid(row=1, column=5, sticky=tk.W, padx=5, pady=2)
# Apply button
ttk.Button(settings_frame, text="Apply Settings", command=update_sensitivity).pack(pady=5)
# Control buttons
buttons_frame = ttk.Frame(main_frame)
buttons_frame.pack(fill=tk.X, expand=True, pady=10)
calibrate_btn = ttk.Button(buttons_frame, text="Calibrate", command=start_calibration)
calibrate_btn.pack(side=tk.LEFT, padx=5)
pause_btn = ttk.Button(buttons_frame, text="Pause", command=toggle_pause)
pause_btn.pack(side=tk.LEFT, padx=5)
debug_btn = ttk.Button(buttons_frame, text="Hide Debug" if show_debug else "Show Debug", command=toggle_debug)
debug_btn.pack(side=tk.LEFT, padx=5)
ttk.Button(buttons_frame, text="Exit", command=lambda: set_running(False)).pack(side=tk.RIGHT, padx=5)
# Connection info frame
conn_frame = ttk.LabelFrame(main_frame, text="Connection")
conn_frame.pack(fill=tk.X, expand=True, pady=5)
conn_frame_content = ttk.Frame(conn_frame)
conn_frame_content.pack(fill=tk.X, expand=True, pady=5)
ttk.Label(conn_frame_content, text="NodeMCU IP:").grid(row=0, column=0, sticky=tk.W, padx=5)
ip_var = tk.StringVar(value=NODEMCU_IP)
ip_entry = ttk.Entry(conn_frame_content, textvariable=ip_var, width=15)
ip_entry.grid(row=0, column=1, sticky=tk.W, padx=5)
def update_ip():
global NODEMCU_IP, DATA_URL
NODEMCU_IP = ip_var.get().strip()
DATA_URL = f'http://{NODEMCU_IP}/data'
connection_status_var.set(f"Connecting to {NODEMCU_IP}...")
# Clear data history when changing connection
for axis in ["x", "y", "z"]:
accel_history[axis].clear()
gyro_history[axis].clear()
ttk.Button(conn_frame_content, text="Update IP", command=update_ip).grid(row=0, column=2, padx=5)
ttk.Label(conn_frame_content, text="URL:").grid(row=1, column=0, sticky=tk.W, padx=5)
ttk.Label(conn_frame_content, text=DATA_URL).grid(row=1, column=1, columnspan=2, sticky=tk.W, padx=5)
# Keyboard shortcuts info
shortcuts_frame = ttk.LabelFrame(main_frame, text="Keyboard Shortcuts")
shortcuts_frame.pack(fill=tk.X, expand=True, pady=5)
shortcuts = """
• ESC: Emergency stop (move mouse to top-left corner)
• SPACE: Toggle pause/resume (when window is focused)
• C: Recalibrate sensor
• 1/2/3: Switch movement modes
"""
ttk.Label(shortcuts_frame, text=shortcuts, justify=tk.LEFT).pack(anchor=tk.W, pady=5)
# Bind keyboard shortcuts
def handle_key(event):
if event.keysym == "space":
toggle_pause()
elif event.keysym == "c":
start_calibration()
elif event.keysym == "1":
change_movement_mode(MODE_RELATIVE)
elif event.keysym == "2":
change_movement_mode(MODE_ABSOLUTE)
elif event.keysym == "3":
change_movement_mode(MODE_HYBRID)
elif event.keysym == "Escape":
# Emergency stop - move to corner to trigger failsafe
pyautogui.moveTo(0, 0)
# Debug message to confirm key press was detected
print(f"Key pressed: {event.keysym}")
root.bind_all("<Key>", handle_key)
# Function to force focus for keyboard events
def ensure_focus(event=None):
root.focus_set()
print("Focus set to main window")
# Bind focus event to main window and all child frames
root.bind("<FocusIn>", ensure_focus)
main_frame.bind("<Button-1>", ensure_focus)
# Call focus explicitly at startup
root.after(1500, ensure_focus) # Set focus after a short delay
# Start the data processing
def initialize():
global mouse_pos
# Get current mouse position at start
current_x, current_y = pyautogui.position()
mouse_pos = {"x": current_x, "y": current_y}
root.after(1000, lambda: root.focus_force())
# Start updating UI after a short delay
root.after(1000, update_ui)
connection_status_var.set(f"Connecting to {NODEMCU_IP}...")
# Show a welcome message
messagebox.showinfo(
"Gesture Mouse Control",
"Welcome to Gesture Mouse Control!\n\n"
"• The default 'Relative' mode lets you control cursor speed with tilt angle\n"
"• Click 'Calibrate' while holding the sensor in neutral position\n"
"• Use the flex sensor for clicking\n"
"• Adjust sensitivity settings if movement is too fast or slow\n\n"
"Press OK to start"
)
if __name__ == "__main__":
try:
initialize()
root.mainloop()
except Exception as e:
print(f"Critical Error: {e}")
sys.exit(1)

import requests
import json
import time
import numpy as np
import pyautogui
import math
from collections import deque
import tkinter as tk
from tkinter import ttk
import threading
import sys
from tkinter import messagebox
NODEMCU_IP = '192.168.31.212' # Replace with your NodeMCU IP
DATA_URL = f'http://{NODEMCU_IP}/data'
CONNECTION_TIMEOUT = 3
MAX_RETRIES = 5
MOUSE_SENSITIVITY_X = 10.0
MOUSE_SENSITIVITY_Y = 10.0
GYRO_THRESHOLD = 0.01 # Minimum gyro movement to register (eliminates jitter)
ACCELERATION_FACTOR = 2 # Exponential acceleration for faster movements
SCREEN_WIDTH, SCREEN_HEIGHT = pyautogui.size()
SMOOTHING_WINDOW = 5 # Number of samples for smoothing
# Movement modes
MODE_ABSOLUTE = "Absolute" # Direct mapping of tilt to screen position
MODE_RELATIVE = "Relative" # Tilt controls velocity, not position
MODE_HYBRID = "Hybrid" # A mix of both with auto-centering
# For safety (prevent mouse from going crazy)
pyautogui.FAILSAFE = True # Move mouse to corner to abort
# For UI
UPDATE_INTERVAL = 25 # milliseconds (faster updates)
# Global variables
is_paused = False
is_running = True
show_debug = True
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
calibration_samples = 20
mouse_pos = {"x": pyautogui.position()[0], "y": pyautogui.position()[1]}
movement_mode = MODE_RELATIVE # Start with relative mode by default
# Flex sensor readings
flex_angle = 0
flex_raw = 0
# Debug variables
last_data_time = 0
fps_counter = 0
fps = 0
# Smoothing buffers
accel_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
gyro_history = {"x": deque(maxlen=SMOOTHING_WINDOW),
"y": deque(maxlen=SMOOTHING_WINDOW),
"z": deque(maxlen=SMOOTHING_WINDOW)}
# Create UI
root = tk.Tk()
root.title("Gesture Mouse Control")
root.geometry("700x580")
root.protocol("WM_DELETE_WINDOW", lambda: set_running(False))
# Style configuration for a more modern look
style = ttk.Style()
style.configure("TButton", padding=6, relief="flat", background="#ccc")
style.configure("TLabel", padding=2)
style.configure("TFrame", padding=5)
def set_running(state):
global is_running
is_running = state
if not state:
root.destroy()
sys.exit(0)
def toggle_pause():
global is_paused
is_paused = not is_paused
pause_btn.config(text="Resume" if is_paused else "Pause")
status_var.set("PAUSED" if is_paused else "RUNNING")
def toggle_debug():
global show_debug
show_debug = not show_debug
debug_btn.config(text="Hide Debug" if show_debug else "Show Debug")
if show_debug:
debug_frame.pack(fill=tk.X, expand=True, pady=5)
else:
debug_frame.pack_forget()
def change_movement_mode(mode):
global movement_mode
movement_mode = mode
status_var.set(f"Mode: {movement_mode}")
# Update radio buttons
mode_var.set(mode)
# Clear movement history when changing modes
for axis in ["x", "y", "z"]:
accel_history[axis].clear()
gyro_history[axis].clear()
def start_calibration():
global baseline_accel, baseline_gyro
status_var.set("Calibrating... Don't move the sensor!")
root.update()
# Reset baselines
baseline_accel = {"x": 0, "y": 0, "z": 0}
baseline_gyro = {"x": 0, "y": 0, "z": 0}
# Collect samples
accel_samples = {"x": [], "y": [], "z": []}
gyro_samples = {"x": [], "y": [], "z": []}
# Progress bar for calibration
progress = ttk.Progressbar(status_frame, length=200, mode="determinate")
progress.pack(pady=5)
for i in range(calibration_samples):
data = fetch_data()
if data:
for axis in ["x", "y", "z"]:
accel_samples[axis].append(data["accelerometer"][axis])
gyro_samples[axis].append(data["gyroscope"][axis])
# Update progress bar
progress["value"] = (i + 1) / calibration_samples * 100
root.update_idletasks()
time.sleep(0.1)
# Calculate averages
for axis in ["x", "y", "z"]:
if accel_samples[axis]: # Check if we got samples
baseline_accel[axis] = sum(accel_samples[axis]) / len(accel_samples[axis])
baseline_gyro[axis] = sum(gyro_samples[axis]) / len(gyro_samples[axis])
progress.destroy()
status_var.set("Calibration complete")
# Update settings display
sensitivity_x_var.set(MOUSE_SENSITIVITY_X)
sensitivity_y_var.set(MOUSE_SENSITIVITY_Y)
threshold_var.set(GYRO_THRESHOLD)
acceleration_var.set(ACCELERATION_FACTOR)
# Reset position to current mouse position
global mouse_pos
current_x, current_y = pyautogui.position()
mouse_pos = {"x": current_x, "y": current_y}
def update_sensitivity():
global MOUSE_SENSITIVITY_X, MOUSE_SENSITIVITY_Y, GYRO_THRESHOLD, ACCELERATION_FACTOR
try:
MOUSE_SENSITIVITY_X = float(sensitivity_x_var.get())
MOUSE_SENSITIVITY_Y = float(sensitivity_y_var.get())
GYRO_THRESHOLD = float(threshold_var.get())
ACCELERATION_FACTOR = float(acceleration_var.get())
status_var.set("Settings updated")
except ValueError:
messagebox.showerror("Invalid Input", "Please enter valid numbers for sensitivity values")
def fetch_data():
"""Fetch data from NodeMCU with retries"""
global fps_counter, last_data_time, fps
# Calculate FPS (Frames Per Second / Data updates per second)
current_time = time.time()
fps_counter += 1
if current_time - last_data_time >= 1.0:
fps = fps_counter
fps_counter = 0
last_data_time = current_time
for attempt in range(MAX_RETRIES):
try:
response = requests.get(DATA_URL, timeout=CONNECTION_TIMEOUT)
if response.status_code == 200:
connection_status_var.set(f"Connected ({fps} FPS)")
return json.loads(response.text)
else:
connection_status_var.set(f"Error: HTTP {response.status_code}")
time.sleep(0.5)
except requests.exceptions.RequestException as e:
connection_status_var.set(f"Connection error: {type(e).__name__}")
time.sleep(0.5)
return None
def smooth_data(data, history_buffer):
"""Apply smoothing to sensor data"""
history_buffer.append(data)
return sum(history_buffer) / len(history_buffer)
def apply_acceleration(value, threshold):
"""Apply non-linear acceleration to movements for better control"""
if abs(value) <= threshold:
return 0 # Filter out minor movements
# The further from threshold, the more acceleration applies
sign = 1 if value > 0 else -1
normalized = abs(value) - threshold
return sign * (normalized ** ACCELERATION_FACTOR)
def process_sensor_data(data):
"""Process sensor data and control mouse"""
global mouse_pos, flex_angle, flex_raw
if not data or is_paused:
return
# Get accelerometer and gyroscope data
accel = data["accelerometer"]
gyro = data["gyroscope"]
# Get flex sensor data if available
if "flex" in data:
flex_angle = data["flex"]["angle"]
flex_raw = data["flex"].get("raw", 0)
# Check if click is detected from NodeMCU
if data["flex"]["click"]:
pyautogui.click()
click_label.config(text="CLICK!")
root.after(500, lambda: click_label.config(text=""))
# Apply calibration
calibrated_accel = {
"x": accel["x"] - baseline_accel["x"],
"y": accel["y"] - baseline_accel["y"],
"z": accel["z"] - baseline_accel["z"]
}
calibrated_gyro = {
"x": gyro["x"] - baseline_gyro["x"],
"y": gyro["y"] - baseline_gyro["y"],
"z": gyro["z"] - baseline_gyro["z"]
}
# Apply smoothing to reduce jitter
for axis in ["x", "y", "z"]:
calibrated_accel[axis] = smooth_data(calibrated_accel[axis], accel_history[axis])
calibrated_gyro[axis] = smooth_data(calibrated_gyro[axis], gyro_history[axis])
# Calculate mouse movement based on the selected mode
dx, dy = 0, 0
if movement_mode == MODE_ABSOLUTE:
# Absolute mode: Map tilt angle directly to screen position
# This is similar to your original code
dx = -calibrated_gyro["y"] if abs(calibrated_gyro["y"]) > GYRO_THRESHOLD else 0
dy = calibrated_gyro["x"] if abs(calibrated_gyro["x"]) > GYRO_THRESHOLD else 0
# Scale the movement
dx = dx * (SCREEN_WIDTH / MOUSE_SENSITIVITY_X)
dy = dy * (SCREEN_HEIGHT / MOUSE_SENSITIVITY_Y)
# Update position
mouse_pos["x"] += dx
mouse_pos["y"] += dy
# When MODE_RELATIVE is selected, replace the existing relative mode implementation with this:
elif movement_mode == MODE_RELATIVE:
# Get current gyroscope values
gyro_x = calibrated_gyro["x"]
gyro_y = calibrated_gyro["y"]
# Initialize movement deltas
dx = 0
dy = 0
# Only process movement if above threshold to eliminate drift
# This is key to keeping cursor in place when sensor is in neutral position
if abs(gyro_y) > GYRO_THRESHOLD:
# Invert Y axis for natural movement direction
dx = -gyro_y
if abs(gyro_x) > GYRO_THRESHOLD:
dy = gyro_x
# Apply the requested amplification factor (200.0) to make movements more responsive
# This makes small tilts translate to meaningful cursor movement
amplification_factor = 200.0
# Apply amplification and sensitivity adjustments
if abs(dx) > 0:
dx_sign = 1 if dx > 0 else -1
dx = dx_sign * ((abs(dx) * amplification_factor) / MOUSE_SENSITIVITY_X)
if abs(dy) > 0:
dy_sign = 1 if dy > 0 else -1
dy = dy_sign * ((abs(dy) * amplification_factor) / MOUSE_SENSITIVITY_Y)
# Apply exponential scaling for larger movements
# This gives finer control for small movements while allowing fast traversal with larger tilts
if abs(dx) > 1.0:
dx = dx * (abs(dx) ** (ACCELERATION_FACTOR - 1.0))
if abs(dy) > 1.0:
dy = dy * (abs(dy) ** (ACCELERATION_FACTOR - 1.0))
# Get current actual mouse position
current_x, current_y = pyautogui.position()
# Update position with calculated movement
new_x = current_x + dx
new_y = current_y + dy
# Update stored mouse position
mouse_pos["x"] = new_x
mouse_pos["y"] = new_y
else:
# Normal movement when tilted
dx = dx * (12.0 / MOUSE_SENSITIVITY_X)
dy = dy * (12.0 / MOUSE_SENSITIVITY_Y)
current_x, current_y = pyautogui.position()
mouse_pos["x"] = current_x + dx
mouse_pos["y"] = current_y + dy
# Constrain to screen boundaries
mouse_pos["x"] = max(0, min(SCREEN_WIDTH - 1, mouse_pos["x"]))
mouse_pos["y"] = max(0, min(SCREEN_HEIGHT - 1, mouse_pos["y"]))
# Move the mouse
pyautogui.moveTo(mouse_pos["x"], mouse_pos["y"])
# Update UI
if show_debug:
accel_label.config(text=f"Accel: X: {calibrated_accel['x']:.2f}, Y: {calibrated_accel['y']:.2f}, Z: {calibrated_accel['z']:.2f}")
gyro_label.config(text=f"Gyro: X: {calibrated_gyro['x']:.2f}, Y: {calibrated_gyro['y']:.2f}, Z: {calibrated_gyro['z']:.2f}")
mouse_label.config(text=f"Mouse: X: {mouse_pos['x']:.0f}, Y: {mouse_pos['y']:.0f}, Mode: {movement_mode}")
flex_label.config(text=f"Flex Sensor: Angle: {flex_angle:.1f}° (Raw: {flex_raw})")
def update_ui():
"""Update UI and process data periodically"""
if is_running:
try:
data = fetch_data()
if data:
process_sensor_data(data)
except Exception as e:
error_msg = str(e)
if len(error_msg) > 50:
error_msg = error_msg[:50] + "..."
status_var.set(f"Error: {error_msg}")
finally:
root.after(UPDATE_INTERVAL, update_ui)
# Create UI elements
main_frame = ttk.Frame(root, padding="10")
main_frame.pack(fill=tk.BOTH, expand=True)
# Status frame
status_frame = ttk.LabelFrame(main_frame, text="Status")
status_frame.pack(fill=tk.X, expand=True, pady=5)
status_var = tk.StringVar(value=f"Mode: {movement_mode}")
status_label = ttk.Label(status_frame, textvariable=status_var, font=("Arial", 12, "bold"))
status_label.pack(pady=5)
connection_status_var = tk.StringVar(value="Initializing...")
connection_status_label = ttk.Label(status_frame, textvariable=connection_status_var)
connection_status_label.pack(pady=2)
click_label = ttk.Label(status_frame, text="", font=("Arial", 16, "bold"), foreground="red")
click_label.pack()
# Debug info
debug_frame = ttk.LabelFrame(main_frame, text="Sensor Data")
if show_debug:
debug_frame.pack(fill=tk.X, expand=True, pady=5)
accel_label = ttk.Label(debug_frame, text="Accel: X: 0.00, Y: 0.00, Z: 0.00")
accel_label.pack(anchor=tk.W)
gyro_label = ttk.Label(debug_frame, text="Gyro: X: 0.00, Y: 0.00, Z: 0.00")
gyro_label.pack(anchor=tk.W)
mouse_label = ttk.Label(debug_frame, text="Mouse: X: 0, Y: 0")
mouse_label.pack(anchor=tk.W)
flex_label = ttk.Label(debug_frame, text="Flex Sensor: Angle: 0.00° (Raw: 0)")
flex_label.pack(anchor=tk.W)
# Movement mode selection
mode_frame = ttk.LabelFrame(main_frame, text="Movement Mode")
mode_frame.pack(fill=tk.X, expand=True, pady=5)
mode_var = tk.StringVar(value=movement_mode)
mode_info = {
MODE_ABSOLUTE: "Tilt directly controls cursor position (return to neutral brings cursor to center)",
MODE_RELATIVE: "Tilt controls cursor movement speed (return to neutral stops cursor where it is)",
MODE_HYBRID: "Combines features of both modes for more natural control"
}
for idx, mode in enumerate([MODE_RELATIVE, MODE_ABSOLUTE, MODE_HYBRID]):
mode_radio = ttk.Radiobutton(
mode_frame,
text=mode,
variable=mode_var,
value=mode,
command=lambda m=mode: change_movement_mode(m)
)
mode_radio.grid(row=0, column=idx, padx=10, pady=5, sticky=tk.W)
# Add tooltip-like description
ttk.Label(mode_frame, text=mode_info[mode], font=("Arial", 8), foreground="gray").grid(
row=1, column=idx, padx=10, pady=(0, 5), sticky=tk.W
)
# Settings
settings_frame = ttk.LabelFrame(main_frame, text="Settings")
settings_frame.pack(fill=tk.X, expand=True, pady=5)
settings_grid = ttk.Frame(settings_frame)
settings_grid.pack(fill=tk.X, expand=True, padx=10, pady=5)
# X sensitivity
ttk.Label(settings_grid, text="X Sensitivity:").grid(row=0, column=0, sticky=tk.W, padx=5, pady=2)
sensitivity_x_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_X))
sensitivity_x_entry = ttk.Entry(settings_grid, textvariable=sensitivity_x_var, width=8)
sensitivity_x_entry.grid(row=0, column=1, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Lower = more sensitive)").grid(row=0, column=2, sticky=tk.W, padx=5, pady=2)
# Y sensitivity
ttk.Label(settings_grid, text="Y Sensitivity:").grid(row=1, column=0, sticky=tk.W, padx=5, pady=2)
sensitivity_y_var = tk.StringVar(value=str(MOUSE_SENSITIVITY_Y))
sensitivity_y_entry = ttk.Entry(settings_grid, textvariable=sensitivity_y_var, width=8)
sensitivity_y_entry.grid(row=1, column=1, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Lower = more sensitive)").grid(row=1, column=2, sticky=tk.W, padx=5, pady=2)
# Gyro threshold
ttk.Label(settings_grid, text="Gyro Threshold:").grid(row=0, column=3, sticky=tk.W, padx=5, pady=2)
threshold_var = tk.StringVar(value=str(GYRO_THRESHOLD))
threshold_entry = ttk.Entry(settings_grid, textvariable=threshold_var, width=8)
threshold_entry.grid(row=0, column=4, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Deadzone)").grid(row=0, column=5, sticky=tk.W, padx=5, pady=2)
# Acceleration factor
ttk.Label(settings_grid, text="Accel Factor:").grid(row=1, column=3, sticky=tk.W, padx=5, pady=2)
acceleration_var = tk.StringVar(value=str(ACCELERATION_FACTOR))
acceleration_entry = ttk.Entry(settings_grid, textvariable=acceleration_var, width=8)
acceleration_entry.grid(row=1, column=4, sticky=tk.W, padx=5, pady=2)
ttk.Label(settings_grid, text="(Higher = more acceleration)").grid(row=1, column=5, sticky=tk.W, padx=5, pady=2)
# Apply button
ttk.Button(settings_frame, text="Apply Settings", command=update_sensitivity).pack(pady=5)
# Control buttons
buttons_frame = ttk.Frame(main_frame)
buttons_frame.pack(fill=tk.X, expand=True, pady=10)
calibrate_btn = ttk.Button(buttons_frame, text="Calibrate", command=start_calibration)
calibrate_btn.pack(side=tk.LEFT, padx=5)
pause_btn = ttk.Button(buttons_frame, text="Pause", command=toggle_pause)
pause_btn.pack(side=tk.LEFT, padx=5)
debug_btn = ttk.Button(buttons_frame, text="Hide Debug" if show_debug else "Show Debug", command=toggle_debug)
debug_btn.pack(side=tk.LEFT, padx=5)
ttk.Button(buttons_frame, text="Exit", command=lambda: set_running(False)).pack(side=tk.RIGHT, padx=5)
# Connection info frame
conn_frame = ttk.LabelFrame(main_frame, text="Connection")
conn_frame.pack(fill=tk.X, expand=True, pady=5)
conn_frame_content = ttk.Frame(conn_frame)
conn_frame_content.pack(fill=tk.X, expand=True, pady=5)
ttk.Label(conn_frame_content, text="NodeMCU IP:").grid(row=0, column=0, sticky=tk.W, padx=5)
ip_var = tk.StringVar(value=NODEMCU_IP)
ip_entry = ttk.Entry(conn_frame_content, textvariable=ip_var, width=15)
ip_entry.grid(row=0, column=1, sticky=tk.W, padx=5)
def update_ip():
global NODEMCU_IP, DATA_URL
NODEMCU_IP = ip_var.get().strip()
DATA_URL = f'http://{NODEMCU_IP}/data'
connection_status_var.set(f"Connecting to {NODEMCU_IP}...")
# Clear data history when changing connection
for axis in ["x", "y", "z"]:
accel_history[axis].clear()
gyro_history[axis].clear()
ttk.Button(conn_frame_content, text="Update IP", command=update_ip).grid(row=0, column=2, padx=5)
ttk.Label(conn_frame_content, text="URL:").grid(row=1, column=0, sticky=tk.W, padx=5)
ttk.Label(conn_frame_content, text=DATA_URL).grid(row=1, column=1, columnspan=2, sticky=tk.W, padx=5)
# Keyboard shortcuts info
shortcuts_frame = ttk.LabelFrame(main_frame, text="Keyboard Shortcuts")
shortcuts_frame.pack(fill=tk.X, expand=True, pady=5)
shortcuts = """
• ESC: Emergency stop (move mouse to top-left corner)
• SPACE: Toggle pause/resume (when window is focused)
• C: Recalibrate sensor
• 1/2/3: Switch movement modes
"""
ttk.Label(shortcuts_frame, text=shortcuts, justify=tk.LEFT).pack(anchor=tk.W, pady=5)
# Bind keyboard shortcuts
def handle_key(event):
if event.keysym == "space":
toggle_pause()
elif event.keysym == "c":
start_calibration()
elif event.keysym == "1":
change_movement_mode(MODE_RELATIVE)
elif event.keysym == "2":
change_movement_mode(MODE_ABSOLUTE)
elif event.keysym == "3":
change_movement_mode(MODE_HYBRID)
elif event.keysym == "Escape":
# Emergency stop - move to corner to trigger failsafe
pyautogui.moveTo(0, 0)
# Debug message to confirm key press was detected
print(f"Key pressed: {event.keysym}")
root.bind_all("<Key>", handle_key)
# Function to force focus for keyboard events
def ensure_focus(event=None):
root.focus_set()
print("Focus set to main window")
# Bind focus event to main window and all child frames
root.bind("<FocusIn>", ensure_focus)
main_frame.bind("<Button-1>", ensure_focus)
# Call focus explicitly at startup
root.after(1500, ensure_focus) # Set focus after a short delay
# Start the data processing
def initialize():
global mouse_pos
# Get current mouse position at start
current_x, current_y = pyautogui.position()
mouse_pos = {"x": current_x, "y": current_y}
root.after(1000, lambda: root.focus_force())
# Start updating UI after a short delay
root.after(1000, update_ui)
connection_status_var.set(f"Connecting to {NODEMCU_IP}...")
# Show a welcome message
messagebox.showinfo(
"Gesture Mouse Control",
"Welcome to Gesture Mouse Control!\n\n"
"• The default 'Relative' mode lets you control cursor speed with tilt angle\n"
"• Click 'Calibrate' while holding the sensor in neutral position\n"
"• Use the flex sensor for clicking\n"
"• Adjust sensitivity settings if movement is too fast or slow\n\n"
"Press OK to start"
)
if __name__ == "__main__":
try:
initialize()
root.mainloop()
except Exception as e:
print(f"Critical Error: {e}")
sys.exit(1)

ایده اصلی اینه که وقتی سنسور رو خم می‌کنی، مقاومتش تغییر می‌کنه و NodeMCU این تغییر رو از طریق پین A0 می‌خونه. بعد توی کدهای پایتون این تغییر به عنوان یک فرمان کلیک راست شناسایی و اجرا می‌شه. حالا اگه مدار رو توی هوا تکون بدی موس حرکت می‌کنه و با خم کردن سنسور، دقیقا همون‌جایی که هستی یک کلیک راست انجام می‌شه!

مرحله ۷

انتقال مدار روی برد سوراخ‌دار و مونتاژ نهایی

برای اینکه پروژه‌مون شکل حرفه‌ای‌تری به خودش بگیره و تو استفاده‌های مداوم آسیب نبینه، بهتره قطعات رو از روی بردبورد به یک برد سوراخ‌دار منتقل کنیم.

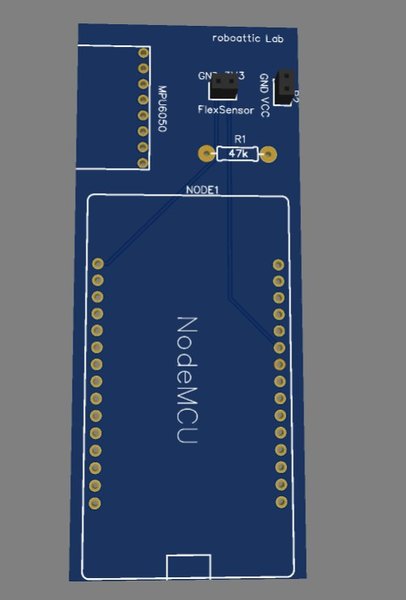

آماده‌سازی برد

یک برد سوراخ‌دار باکیفیت بردار و اون رو به ابعادی که در ادامه میگم برش بزن تا کاملا جمع‌وجور و خوش‌دست بشه.

ابعاد استاندارد

عرض برد رو 35 میلی‌متر در نظر بگیر.
طول برد هم 85 میلی‌متر باشه تا همه قطعات به راحتی روش جا بشن.

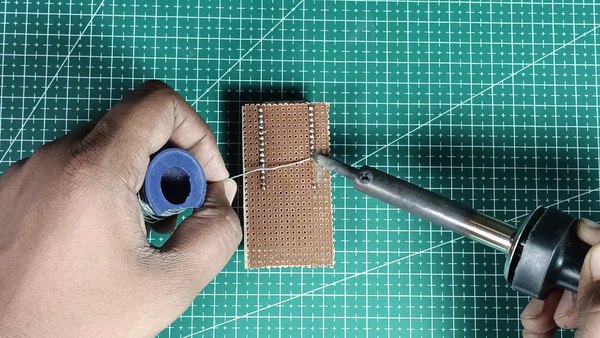

لحیم‌کاری قطعات

پیشنهاد می‌کنم برای اتصال NodeMCU مستقیما پایه‌ها رو لحیم نکنی. اول پین‌هدرهای مادگی رو روی برد لحیم کن تا هر وقت خواستی بتونی ماژول رو جدا کنی.
طبق شماتیکی که روی بردبورد بستی، تمام اتصالات رو با سیم‌های لاکی یا سیم‌های نازک روی برد سوراخ‌دار لحیم کن.
در آخر حتما چک کن که پایه‌ها به هم اتصالی نداشته باشن تا مدارت نسوزه.

مونتاژ نهایی

وقتی از صحت لحیم‌کاری‌ها مطمئن شدی، برد NodeMCU و سنسورها رو سر جای خودشون روی پین‌هدرها قرار بده.
چک کن که سنسور خمش در موقعیت مناسبی برای انگشتت قرار گرفته باشه.

تامین تغذیه مدار

برای استفاده بی‌سیم، می‌تونی از یک ولتاژ ورودی بین 5 تا 12 ولت استفاده کنی.
بهترین گزینه استفاده از دو باتری لیتیومی 18650 به صورت سری هست که ولتاژ 7.4 ولت رو به مدارت میده.
حواست باشه که قطب‌های مثبت و منفی باتری رو درست وصل کنی تا ماژول‌ها آسیب نبینن.

اجرای نهایی

کدهای اصلی رو که تو مراحل قبل روی برد آپلود کردی، پس دیگه نیازی به برنامه‌نویسی مجدد نیست. فقط کافیه باتری رو متصل کنی، اسکریپت پایتون رو توی کامپیوتر ران کنی و از موس جادویی خودت لذت ببری!

مرحله ۸

جمع‌بندی و تست نهایی موس

خسته نباشی! تو الان موفق شدی یک موس حرکتی جذاب و هوشمند با ترکیب سنسور MPU6050 و ماژول NodeMCU بسازی. این پروژه نه‌تنها یک گجت کاربردی برای استفاده شخصیه، بلکه نشون میده چطور می‌شه با ترکیب سنسورها و برنامه‌نویسی، سخت‌افزارها رو با کامپیوتر یکپارچه کرد.

حتما این موس جذاب رو بساز و روی نرم‌افزارها یا حتی بازی‌های ساده تستش کن. اگه موقع راه‌اندازی به مشکلی خوردی یا ایده‌ای برای ارتقای این موس (مثلا اضافه کردن کلیک چپ) داری، حتما تو بخش نظرات برامون بنویس تا با هم در موردش گپ بزنیم.

ساخت اینجور پروژه‌ها تازه اول مسیره. با تغییر کدهای پایتون می‌تونی کاربردهای خیلی خفن‌تری برای این مدار تعریف کنی. دمت گرم که تا اینجا همراه آیسی‌مدار بودی!

فایل‌های پیوست

INO node_mcu_code.ino

ZIP Adafruit_MPU6050-master.zip

تو میتونی اولین سازنده باشی!

اگه پروژه رو ساختی به اشتراک بزار و اعتبار هدیه بگیر

این آموزش با استانداردهای اختصاصی آیسی‌مدار بازنویسی و بهینه‌سازی شده و تمامی حقوق انتشار آن متعلق به این مجموعه است و در صورت کپی یا بازنشر پیگرد قانونی خواهد داشت.
