تله پشه هوشمند و اتوماتیک با آردوینو نانو

// Mosquito Trap Automation by Make-It
// This code uses a DS3231 Real-Time Clock (RTC) to trigger a water change every 4 days.
#include <Wire.h>
#include "RTClib.h"
// Create an RTC object
RTC_DS3231 rtc;
// --- Pin Definitions ---

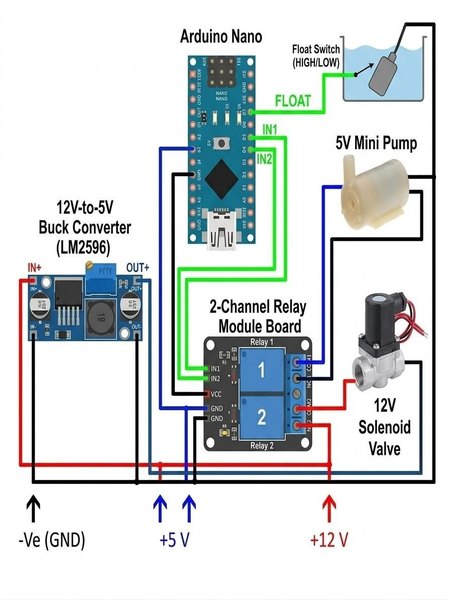

#define EMPTY_PUMP_PIN 7 // Digital pin connected to IN1 on the relay module
#define REFILL_PUMP_PIN 8 // Digital pin connected to IN2 on the relay module
// --- Configuration ---
const long CYCLE_INTERVAL_SECONDS = 345600; // 4 days (4 * 24 * 60 * 60 seconds)
const int EMPTY_PUMP_DURATION_MS = 60000; // Run empty pump for 60 seconds
const int REFILL_PUMP_DURATION_MS = 60000; // Run refill pump for 60 seconds
// We need to store the time of the last cycle. We'll use a variable for this.
// For a real-world device, this should be stored in EEPROM to survive power loss.
long lastCycleTime = 0;
void setup() {
Serial.begin(9600);
Wire.begin();
pinMode(EMPTY_PUMP_PIN, OUTPUT);
pinMode(REFILL_PUMP_PIN, OUTPUT);
// Make sure pumps are off at startup
digitalWrite(EMPTY_PUMP_PIN, HIGH); // Relays are often LOW-triggered, so HIGH is OFF
digitalWrite(REFILL_PUMP_PIN, HIGH);
if (!rtc.begin()) {
Serial.println("Couldn't find RTC");
Serial.flush();
abort();
}
// UNCOMMENT THE FOLLOWING LINE THE *FIRST* TIME YOU UPLOAD
// This sets the RTC to the date and time this sketch was compiled.
// After setting the time, comment it out and re-upload to prevent resetting the time on every reboot.
// rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
Serial.println("Mosquito Trap Initialized.");
// Get the current time to start our cycle timer
DateTime now = rtc.now();
lastCycleTime = now.unixtime();
Serial.print("Current Unix time: ");
Serial.println(lastCycleTime);
}
void loop() {
// Get the current time from the RTC
DateTime now = rtc.now();
long currentTime = now.unixtime();
Serial.print("Current Time: ");
Serial.print(now.timestamp(DateTime::TIMESTAMP_FULL));
Serial.print(", Seconds since last cycle: ");
Serial.println(currentTime - lastCycleTime);
// Check if 4 days (CYCLE_INTERVAL_SECONDS) have passed since the last cycle
if (currentTime - lastCycleTime >= CYCLE_INTERVAL_SECONDS) {
Serial.println("--- Cycle time reached! Starting water change. ---");
runWaterChangeCycle();
// Update the last cycle time to the current time
lastCycleTime = currentTime;
Serial.println("--- Water change complete. Timer reset. ---");
} else {
Serial.println("Not time yet. Waiting...");
}
// Wait for a while before checking again to conserve power.
// For ultra-low power, you would use deep sleep modes here.
delay(3600000); // Check once per hour (3600 * 1000 ms)
}
void runWaterChangeCycle() {
// Step 1: Turn on the emptying pump
Serial.println("Starting empty pump...");
digitalWrite(EMPTY_PUMP_PIN, LOW); // LOW turns the relay ON
delay(EMPTY_PUMP_DURATION_MS);
// Step 2: Turn off the emptying pump
digitalWrite(EMPTY_PUMP_PIN, HIGH); // HIGH turns the relay OFF
Serial.println("Empty pump finished.");
delay(5000); // Wait 5 seconds before refilling
// Step 3: Turn on the refilling pump
Serial.println("Starting refill pump...");
digitalWrite(REFILL_PUMP_PIN, LOW); // LOW turns the relay ON
delay(REFILL_PUMP_DURATION_MS);
// Step 4: Turn off the refilling pump
digitalWrite(REFILL_PUMP_PIN, HIGH); // HIGH turns the relay OFF
Serial.println("Refill pump finished.");
}
